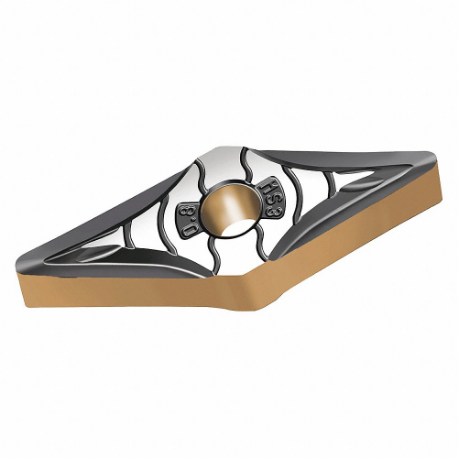

WALTER TOOLS VNMG160408-MS3 WSM10S 6890840 Diamond Turning Insert, Neutral, 3/16 Inch Thick, 1/32 Inch Corner Radius

Item: CU9PEX
Model: VNMG160408-MS3 WSM10S
23 In Stock

Ships within 2 days via

£53.03
5.00% off
£50.38/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Specifications

Ansi Code VNMG332-MS3 WSM10S
Chip-breaker Yes
Chip-breaker Code MS3
Clearance Angle 0°
Corner Radius 1/32"
Cutting Application Turning
Cutting Depth 0.8 mm to 2.5 mm
Cutting Direction Neutral
Finish - Machining Tialn+Al2O3+Al
Included Angle 35°
Inscribed Circle 3/8"
Insert Code VNMG332
Insert Holding Type Straight Hole
Insert Style VNMG
Iso Number VNMG160408-MS3 WSM10S
Manufacturer Grade Wsm10S
Material Carbide
Material - Machining Carbide
Measurement System Fractional Inch
Number Of Cutting Edges 4
Primary Material Application Nickel, Stainless Steel, Titanium
Primary Material Application Iso Code M, S
Rake Negative
Shape Rhombic
System Of Measurement Imperial
Thickness 3/16"
Cutting Edge Length 0.654"
Cutting Speed 380 SFPM to 580 SFPM
Dia. Of Inscribed Circle 3/8"
Feed Rate 0.005" to 0.01"
Insert Thickness 0.188"
Major Clearance Angle 0°
No. Of Cutting Edges 4
Radius 0.031"

Product Details

Shipping Information

Height 2.54
Length 2.54
Width 2.54
Country Of Origin DE
Weight 0.099000
