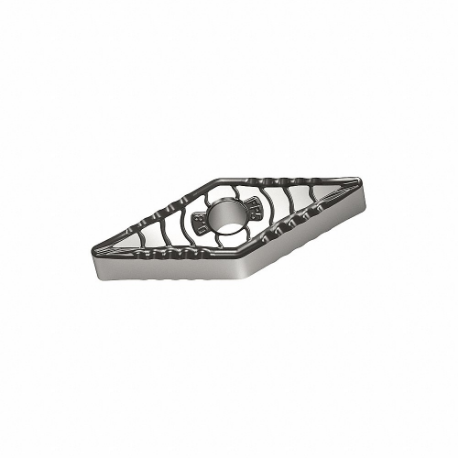

WALTER TOOLS VNMG160404-FP5 WPP10S Diamond Turning Insert, Neutral, 3/16 Inch Thick, 1/64 Inch Corner Radius

Item: CU9PFT
Model: VNMG160404-FP5 WPP10S
16 In Stock

Ships within 2 days via

£50.58
5.00% off
£48.05/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Ansi Code VNMG331-FP5 WPP10S
Chip-breaker Yes
Chip-breaker Code FP5
Clearance Angle 0°
Corner Radius 1/64"
Cutting Application Turning
Cutting Depth 0.1 mm to 1.5 mm
Cutting Direction Neutral
Cutting Edge Length 16 mm
Finish - Machining Ticn+Al2O3+Ticn
Included Angle 35°
Inscribed Circle 3/8"
Insert Code VNMG331
Insert Holding Type Straight Hole
Insert Style VNMG
Iso Number VNMG160404-FP5 WPP10S
Manufacturer Grade Wpp10S
Material Carbide
Material - Machining Carbide
Measurement System Fractional Inch
Number Of Cutting Edges 2
Primary Material Application Steel
Primary Material Application Iso Code P
Rake Negative
Shape Rhombic
System Of Measurement Imperial
Thickness 3/16"
Cutting Speed 830 SFPM to 1370 SFPM
Dia. Of Inscribed Circle 3/8"
Feed Rate 0.002" to 0.009"
Insert Thickness 0.188"
Major Clearance Angle 0°
No. Of Cutting Edges 4
Radius 0.016"

Product Details

Turning Insert

Shipping Information

height 2.54
length 2.54
width 2.54
country of origin DE
weight 0.009000
