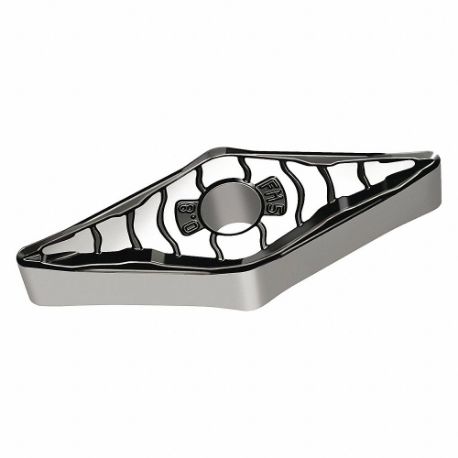

WALTER TOOLS VNMG160402-FM5 WSM20S 7091931 Diamond Turning Insert, Neutral, 3/16 Inch Thick, 0.0080 Inch Corner Radius

Item: CU9PEL
Model: VNMG160402-FM5 WSM20S
27 In Stock

Ships within 2 days via

£53.38
5.00% off
£50.7/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Specifications

Ansi Code VNMG3(3)0.5-FM5 WSM20S
Chip-breaker Yes
Chip-breaker Code FM5
Clearance Angle 0°
Corner Radius 0.008"
Cutting Application Turning
Cutting Depth 0.1 mm to 1 mm
Cutting Direction Neutral
Cutting Edge Length 16 mm
Finish - Machining Tialn+Al2O3+Al
Included Angle 35°
Inscribed Circle 3/8"
Insert Code VNMG33.5
Insert Holding Type Straight Hole
Insert Style VNMG
Iso Number VNMG160402-FM5 WSM20S
Manufacturer Grade Wsm20S
Material Carbide
Material - Machining Carbide
Measurement System Fractional Inch
Number Of Cutting Edges 4
Primary Material Application Nickel, Stainless Steel, Titanium
Primary Material Application Iso Code M, S
Rake Negative
Shape Rhombic
System Of Measurement Imperial
Thickness 3/16"
Cutting Speed 340 SFPM to 500 SFPM
Dia. Of Inscribed Circle 3/8"
Feed Rate 0.001" to 0.004"
Insert Thickness 0.188"
Major Clearance Angle 0°
No. Of Cutting Edges 4
Radius 0.008"

Product Details

Shipping Information

Height 2.54
Length 2.54
Width 2.54
Country Of Origin DE
Weight 0.099000
