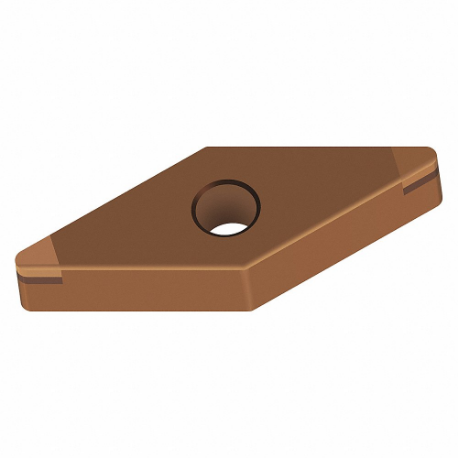

WALTER TOOLS VNGA160408TM-2 WBH10 7636844 Diamond Turning Insert, Neutral, 3/16 Inch Thick, 1/32 Inch Corner Radius

Item: CU9PDY
Model: VNGA160408TM-2 WBH10
29 In Stock

Ships within 2 days via

£157.09
5.00% off
£149.23/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Specifications

Ansi Code VNGA332TM-2
Chip-breaker Yes
Chip-breaker Code TM-2
Clearance Angle 0°
Corner Radius 1/32"
Cutting Direction Neutral
Cutting Edge Length 16.61 mm
Included Angle 35°
Inscribed Circle 3/8"
Insert Code VNGA332
Insert Style VNGA
Iso Number VNGA160408TM-2
Manufacturer Grade Wbh10
Material CBN
Material - Machining CBN
Measurement System Fractional Inch
Rake Negative
Shape Diamond
System Of Measurement Imperial
Thickness 3/16"
Through Hole Inside Dia. 0.15"
Depth Of Cut 0.004" to 0.02"
Dia. Of Inscribed Circle 3/8"
Feed Rate 0.002" to 0.008"
Insert Thickness 0.188"
Limited Cutting Edge Length 0.118"
Major Clearance Angle 0°
No. Of Cutting Edges 2
Radius 0.031"

Product Details

Shipping Information

Height 2.54
Length 2.54
Width 2.54
Country Of Origin DE
Weight 0.026100
