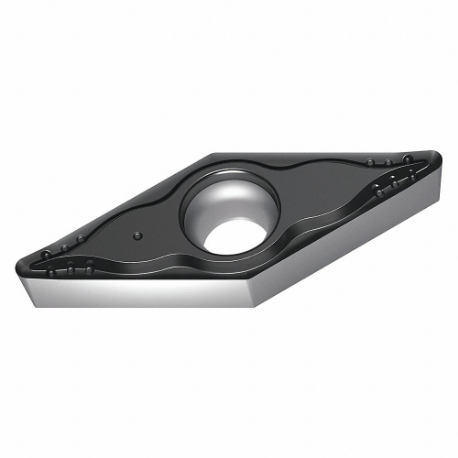

WALTER TOOLS VCGT110304-MM4 WSM01 7268648 Diamond Turning Insert, Neutral, 1/8 Inch Thick, 1/64 Inch Corner Radius

Item: CU9NYJ
Model: VCGT110304-MM4 WSM01
25 In Stock

Ships within 2 days via

£53.32
5.00% off
£50.65/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Specifications

Ansi Code VCGT221-MM4 WSM01
Chip-breaker Yes
Chip-breaker Code MM4
Clearance Angle 7°
Corner Radius 1/64"
Cutting Application Turning
Cutting Depth 0.4 mm to 1.5 mm
Cutting Direction Neutral
Cutting Edge Length 11.07 mm
Finish Titanium Aluminum Nitride Coat
Finish - Machining TiAlN
Included Angle 35°
Inscribed Circle 1/4"
Insert Code VCGT221
Insert Holding Angle 40° to 60.0°
Insert Holding Type 40° To 60° Countersink Hole
Insert Style VCGT
Iso Number VCGT110304-MM4 WSM01
Manufacturer Grade Wsm01
Material Carbide
Material - Machining Carbide
Measurement System Fractional Inch
Number Of Cutting Edges 2
Primary Material Application Nickel, Stainless Steel, Titanium
Primary Material Application Iso Code M, S
Rake Positive
Shape Rhombic
System Of Measurement Imperial
Thickness 1/8"
Cutting Speed 290 SFPM to 460 SFPM
Dia. Of Inscribed Circle 1/4"
Feed Rate 0.003" to 0.008"
Insert Thickness 1/8"
Major Clearance Angle 7°
No. Of Cutting Edges 2
Radius 0.016"

Product Details

Shipping Information

Height 2.54
Length 2.54
Width 2.54
Country Of Origin DE
Weight 0.031500
