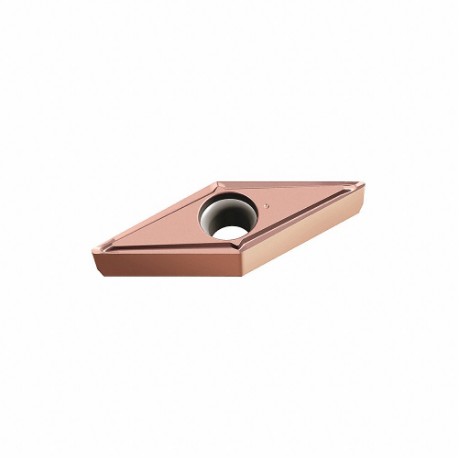

WALTER TOOLS VCGT110302-PF2 WSM20 Diamond Turning Insert, Neutral, 1/8 Inch Thick, 0.0080 Inch Corner Radius

Item: CU9NXW
Model: VCGT110302-PF2 WSM20
25 In Stock

Ships within 2 days via

£51.65
5.00% off
£49.07/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Specifications

Ansi Code VCGT2(2)0.5-PF2 WSM20
Chip-breaker Yes
Chip-breaker Code PF2
Clearance Angle 7°
Corner Radius 0.008"
Cutting Application Turning
Cutting Direction Neutral
Cutting Edge Length 11.07 mm
Finish - Machining Tialn+Al2O3+Zrn
Included Angle 35°
Inscribed Circle 1/4"
Insert Code VCGT22.5
Insert Holding Angle 40° to 60.0°
Insert Holding Type 40° To 60° Countersink Hole
Insert Style VCGT
Iso Number VCGT110302-PF2 WSM20
Manufacturer Grade Wsm20
Material Carbide
Material - Machining Carbide
Measurement System Fractional Inch
Number Of Cutting Edges 2
Primary Material Application Nickel, Stainless Steel, Steel, Titanium
Primary Material Application Iso Code M, P, S
Rake Positive
Shape Rhombic
System Of Measurement Imperial
Thickness 1/8"

Product Details

Shipping Information

Height 2.54
Length 2.54
Width 2.54
Country Of Origin DE
Weight 0.090000
