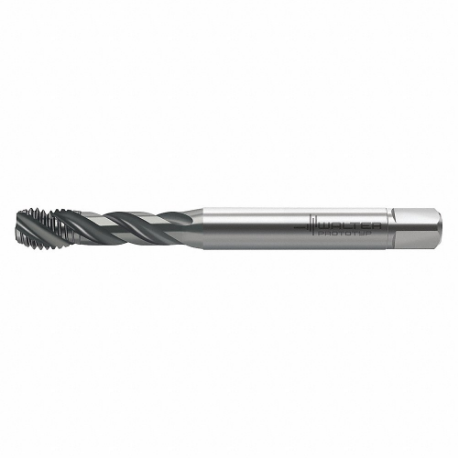

WALTER TOOLS TC121-M5-C1-WW60RG 7240822 Spiral Flute Tap, M5X0.8 Thread Size, 8 mm Thread Length, 70 mm Length, Tialn
Item: CU9JPD
Model: TC121-M5-C1-WW60RG
14 In Stock
Ships within 2 days via
5.00% off
£168.61/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| 55% Thread Drill Size | 4.4 mm |
|---|---|
| 65% Thread Drill Size | 4.3 mm |
| 75% Thread Drill Size | 4.2 mm |
| Coolant Fed | Non Coolant Through |
| Drill Bit Size | 4.2 mm |
| Extended Neck | Yes |
| Features | For Long Chipping Materials |
| Finish | Titanium Aluminum Nitride Coated |
| Grade | Grade WW60RG |
| Helix Angle | 40° |
| Material Grade - Machining | Grade WW60RG |
| Number Of Flutes | 3 |
| Overall Length | 70 mm |
| Primary Material Application | Steel |
| Primary Material Application Iso Code | P |
| Secondary Material Application | Aluminum, Brass, Bronze, Cast Iron, Copper, Stainless Steel |
| Secondary Material Application Iso Code | K, M, N |
| Shank Dia. | 6 mm |
| Shank Length | 49.3 mm |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| Spiral Direction | Right Hand |
| Square Size | 4.9 mm |
| Standard Logo | din.png |
|---|---|
| Standards | DIN 371 |
| System Of Measurement | Metric |
| Tap Chamfer | Modified Bottoming, Semi Bottoming |
| Tap Finish | TiAlN |
| Tap Material | High Speed Steel |
| Tap Shank Standard | DIN 371 |
| Tap Style | Spiral Flute |
| Tap Thread Size | M5 X 0.8 |
| Tap Type | Spiral Flute |
| Thread Direction | Right Hand |
| Thread Length | 8 mm |
| Thread Limit | 6HX |
| Thread Limit/class Of Fit | 6HX |
| Thread Pitch | 0.8 mm |
| Thread Standard | Metric Coarse |
| Clamping Width | 0.193" |
| Connection Dia. | 0.236" |
| Driving Square Length | 0.315" |
| Functional Length | 2.756" |
| No. Of Grooves | 3 |
| Usable Length | 0.815" |
Product Details
Spiral Flute Tap
Shipping Information
| height | 2.54 |
|---|---|
| length | 7 |
| width | 2.54 |
| country of origin | DE |
|---|---|
| weight | 0.006300 |
