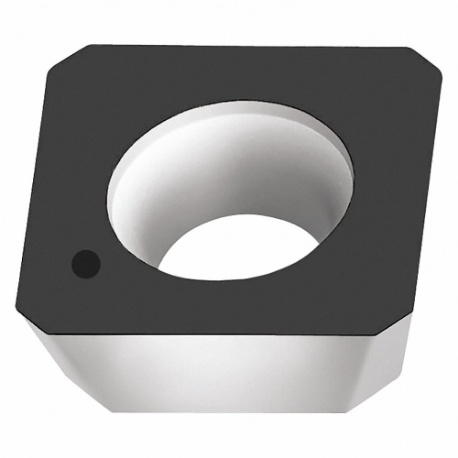

WALTER TOOLS SPMW1204AEN-A57 WKP35S 5917928 Square Milling Insert, 1/2 Inch Inscribed Circle, 0.0200 Inch Corner Radius

Item: CU8MHV
Model: SPMW1204AEN-A57 WKP35S
21 In Stock

Ships within 2 days via

£30.9
5.00% off
£29.35/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Ansi Code SPMW1204AEN-A57
Ansi Number SPMW1204AEN-A57
Chip-breaker Yes
Chip-breaker Code A57
Clearance Angle 11°
Coating Chemical vapor deposition
Coating Process CVD
Corner Radius 0.02"
Cutting Edge Length 12.7 mm
Finish Titanium Carbonitride, Aluminum Oxide
Finish - Machining Ticn+Al2O3+(Ticn)
Hole Type With Hole
Inscribed Circle 1/2"
Insert Size 1204
Insert Style SPMW
Iso Number SPMW1204AEN-A57
Manufacturer Grade Wkp35S
Material Carbide
Material - Machining Carbide
Measurement System Fractional Inch
Number Of Cutting Edges 4
Primary Material Application Cast Iron, Steel
Primary Material Application Iso Code K, P
Rake Positive
Shape Square
Style SPMW
System Of Measurement Imperial
Thickness 3/16"
Indexable Insert Tolerance Class Class M
Insert Thickness 0.187"
Major Clearance Angle 11°
No. Of Cutting Edges 4
Radius 0.02"
Wiper Cutting Edge Length 0.055"

Product Details

Milling Insert

Shipping Information

height 2.54
length 2.54
width 2.54
country of origin DE
weight 0.067500
