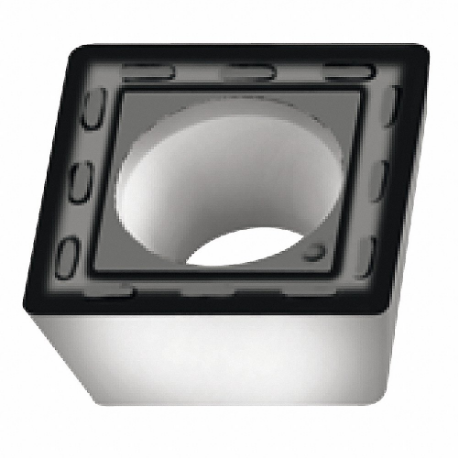

WALTER TOOLS SPMW060304-A57 WAK15 5015849 Square Milling Insert, 1/4 Inch Inscribed Circle, 0.40 mm Corner Radius, 0.125 Inch Thick

Item: CU8MNE
Model: SPMW060304-A57 WAK15
16 In Stock

Ships within 2 days via

£20.54
5.00% off
£19.51/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Ansi Code SPMW060304-A57 WAK15
Ansi Number SPMW060304-A57 WAK15
Chip-breaker Yes
Chip-breaker Angle 0° , Chipbreaker Groove
Chip-breaker Code A57
Clearance Angle 11°
Coating Chemical vapor deposition
Coating Process CVD
Corner Radius 0.4 mm
Cutting Application Milling
Cutting Direction Right Hand
Cutting Edge Length 6.35 mm
Finish Titanium Aluminum Nitride, Aluminum Oxide, Titanium Nitride
Finish - Machining Ticn+Al2O3+Tin
For Toolholder F2339.T14.016.Z02.24, F2339.T18.020.Z02.28, F2339.T22.025.Z02.32, F2339.T28.030.Z02.42, F2339.T28.032.Z02.43, F2339.W16.016.Z02.24, F2339.W20.016.Z02.24, F2339.W20.020.Z02.28, F2339.W25.025.Z02.32, F2339.W32.030.Z02.42, F2339.W32.032.Z02.43, F2339.W40.040.Z02.57, F2339.Z25.020.Z02.28, F2339.Z32.025.Z02.32, F2339.Z40.030.Z02.42, F2339.Z40.032.Z02.43
For Use With F2339 Ball Nose Mill
Hole Type Countersink Hole
Included Angle 90°
Inscribed Circle 1/4"
Insert Holding Type Screw Held
Insert Size 60304
Insert Style SPMW
Iso Number SPMW060304-A57 WAK15
Manufacturer Grade Wak15
Material Carbide
Material - Machining Carbide
Mounting Style Screw Held
Number Of Cutting Edges 4
Primary Material Application Cast Iron
Primary Material Application Iso Code K
Rake Positive
Shape Square
Style SPMW
System Of Measurement Metric
Thickness 1/8"
Indexable Insert Tolerance Class Class M
Insert Thickness 1/8"
Major Clearance Angle 11°
No. Of Cutting Edges 4
Radius 0.016"

Product Details

Milling Insert

Shipping Information

height 2.54
length 2.54
width 2.54
country of origin DE
weight 0.031500
