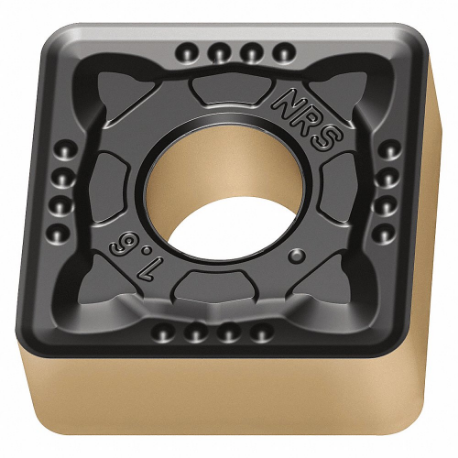

WALTER TOOLS SNMG150616-NRS WSM20S 7053928 Square Turning Insert, 5/8 Inch Inscribed Circle, Neutral, 1/16 Inch Corner Radius

Item: CU9TBL
Model: SNMG150616-NRS WSM20S
13 In Stock

Ships within 2 days via

£52.19
5.00% off
£49.58/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Specifications

Ansi Code SNMG544-NRS
Chip-breaker Yes
Chip-breaker Code NRS
Clearance Angle 0°
Coating Process PVD
Corner Radius 1/16"
Cutting Application Turning
Cutting Depth 1.2 mm to 7 mm
Cutting Direction Neutral
Cutting Edge Length 15.88 mm
Finish - Machining Tialn+Al2O3+Al
Included Angle 90°
Inscribed Circle 5/8"
Insert Code SNMG544
Insert Holding Type Straight Hole
Insert Style SNMG
Iso Number SNMG150616-NRS
Manufacturer Grade Wsm20S
Material Carbide
Material - Machining Carbide
Measurement System Fractional Inch
Number Of Cutting Edges 8
Primary Material Application Nickel, Stainless Steel, Titanium
Primary Material Application Iso Code M, S
Rake Negative
Shape Square
System Of Measurement Imperial
Thickness 1/4"
Cutting Speed 240 SFPM to 430 SFPM
Dia. Of Inscribed Circle 5/8"
Feed Rate 0.009" to 0.022"
Insert Thickness 1/4"
Major Clearance Angle 0°
No. Of Cutting Edges 8
Radius 0.063"

Product Details

Shipping Information

Height 2.54
Length 2.54
Width 2.54
Country Of Origin DE
Weight 0.189000
