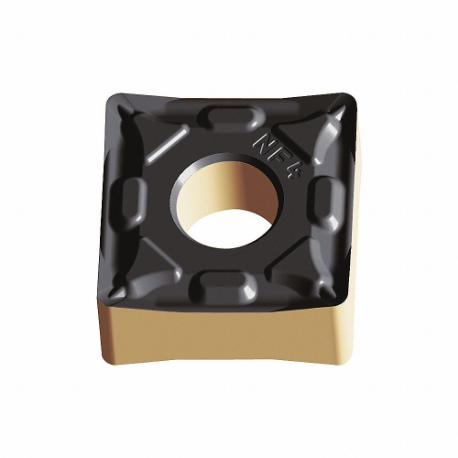

WALTER TOOLS SNMG120412-NF4 WSM10 Square Turning Insert, 1/2 Inch Inscribed Circle, Neutral, 3/64 Inch Corner Radius

Item: CU9PQR
Model: SNMG120412-NF4 WSM10
26 In Stock

Ships within 2 days via

£31.34
5.00% off
£29.77/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Ansi Code SNMG433-NF4
Chip-breaker Yes
Chip-breaker Code NF4
Clearance Angle 0°
Coating Process PVD
Corner Radius 3/64"
Cutting Application Turning
Cutting Direction Neutral
Cutting Edge Length 12.7 mm
Finish - Machining Tialn+Al2O3+Zrn
Included Angle 90°
Inscribed Circle 1/2"
Insert Code SNMG433
Insert Holding Type Straight Hole
Insert Style SNMG
Iso Number SNMG120412-NF4
Manufacturer Grade Wsm10
Material Carbide
Material - Machining Carbide
Measurement System Fractional Inch
Number Of Cutting Edges 4
Primary Material Application Nickel, Stainless Steel, Titanium
Primary Material Application Iso Code M, S
Rake Negative
Shape Square
System Of Measurement Imperial
Thickness 3/16"

Product Details

Turning Insert

Shipping Information

height 2.54
length 2.54
width 2.54
country of origin DE
weight 0.090000
