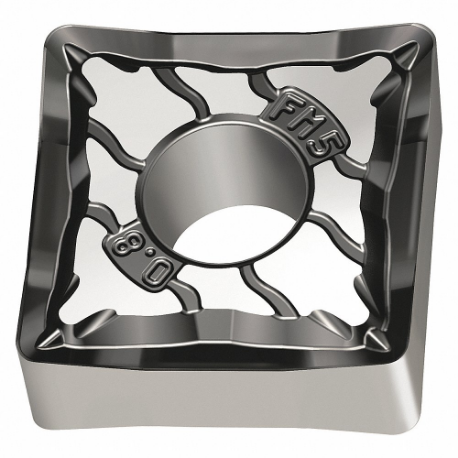

WALTER TOOLS SNMG120412-FM5 WMP20S 7499335 Square Turning Insert, 1/2 Inch Inscribed Circle, Neutral, 3/64 Inch Corner Radius

Item: CU9PRA
Model: SNMG120412-FM5 WMP20S
27 In Stock

Ships within 2 days via

£30.73
5.00% off
£29.2/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Ansi Code SNMG433-FM5
Chip-breaker Yes
Chip-breaker Code FM5
Clearance Angle 0°
Coating Process CVD
Corner Radius 3/64"
Cutting Direction Neutral
Cutting Edge Length 12.7 mm
Finish - Machining Ticn+Al2O3+(Ticn)
Inscribed Circle 1/2"
Insert Code SNMG433
Insert Style SNMG
Iso Number SNMG120412-FM5
Manufacturer Grade WMP20S
Material Carbide
Material - Machining Carbide
Measurement System Fractional Inch
Rake Negative
Shape Square
System Of Measurement Imperial
Thickness 3/16"
Cutting Speed 400 SFPM to 660 SFPM
Depth Of Cut 0.02" to 0.079"
Dia. Of Inscribed Circle 1/2"
Feed Rate 0.004" to 0.01"
Insert Thickness 0.188"
Major Clearance Angle 0°
No. Of Cutting Edges 8
Radius 0.047"

Product Details

Turning Insert

Shipping Information

height 2.54
length 2.54
width 2.54
country of origin DE
weight 0.090000
