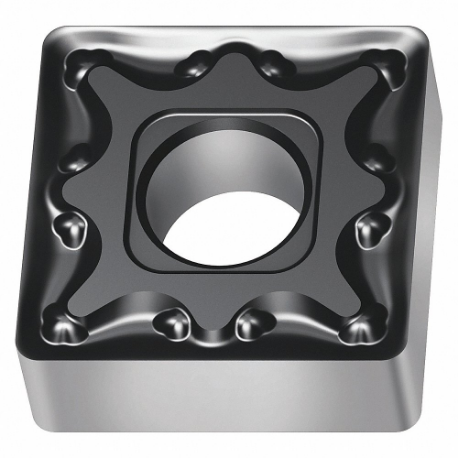

WALTER TOOLS SNMG120408-MM5 WMP20S 7376606 Square Turning Insert, 1/2 Inch Inscribed Circle, Neutral, 1/32 Inch Corner Radius

Item: CU9PNU
Model: SNMG120408-MM5 WMP20S
21 In Stock

Ships within 2 days via

£31.14
5.00% off
£29.58/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Specifications

Ansi Code SNMG432-MM5
Chip-breaker Yes
Clearance Angle 0°
Coating Process CVD
Corner Radius 1/32"
Cutting Application Turning
Cutting Depth 0.8 mm to 3 mm
Cutting Direction Neutral
Cutting Edge Length 12.7 mm
Finish - Machining Ticn+Al2O3+Ticn
Included Angle 90°
Inscribed Circle 1/2"
Insert Code SNMG432
Insert Holding Type Straight Hole
Insert Style SNMG
Iso Number SNMG120408-MM5
Manufacturer Grade WMP20S
Material Carbide
Material - Machining Carbide
Measurement System Fractional Inch
Number Of Cutting Edges 8
Primary Material Application Stainless Steel, Steel
Primary Material Application Iso Code M, P
Rake Negative
Shape Square
System Of Measurement Imperial
Thickness 3/16"
Cutting Speed 400 SFPM to 620 SFPM
Dia. Of Inscribed Circle 1/2"
Feed Rate 0.006" to 0.01"
Insert Thickness 0.188"
Major Clearance Angle 0°
No. Of Cutting Edges 8
Radius 0.031"

Product Details

Shipping Information

Height 2.54
Length 2.54
Width 2.54
Country Of Origin DE
Weight 0.090000
