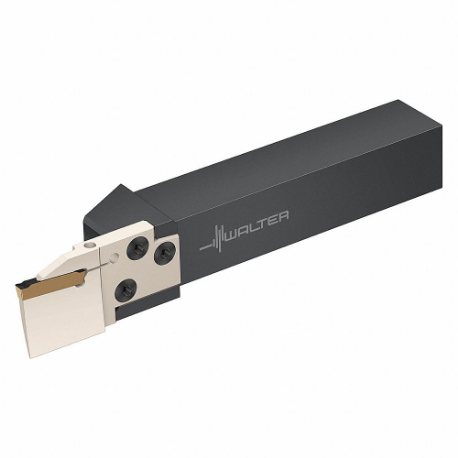

| Ansi Code | NCFE25-2525R-GX24-3-4 |
|---|---|
| Ansi Number | NCFE25-2525R-GX24-3-4 |
| Cutting Application | Axial Grooving |
| Cutting Direction | Right Hand |
| Insert Holding Type | Screw Clamping |
| Insert Style | GX |
| Iso Number | NCFE25-2525R-GX24-3-4 |
| Overall Length | 6.89" |
| Product Family | NOVEX-CUT |
| Toolholder Style | NCFE |
| Body Width | 0.118" |
|---|---|
| Functional Width | 1.177" |
| Hand | R |
| Indexable Insert Width | 0.157" to 0.197" |
| Length | 6.89" |
| Max. Cutting Depth | 0.827" |
| Max. Workpiece Dia. | 11.811" |
| Min. Dia. | 5.906" |
| Shank Height | 0.984" |
| Shank Width | 0.984" |
| Height | 2.54 |
|---|---|
| Length | 17.5 |
| Width | 2.54 |
| Country Of Origin | DE |
|---|---|
| Weight | 0.774000 |
| Style | Model | Cutting Direction | Shank Dia. | Toolholder Style | Insert Holding Type | Insert Style | Cutting Location | Cutting Type | Cutting Angle | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | G4014-1212L-2T12DX18-P | Left Hand | - | G4014 | Side Clamping Screw | DX | - | - | - | 370.29 | |
| B | G4014-1616L-2.5T17DX18-P | Left Hand | - | G4014 | Side Clamping Screw | DX | - | - | - | 388.44 | |
| C | G4014-1212L-2T12DX18 | Left Hand | - | G4014 | Side Clamping Screw | DX | - | - | - | 244.00 | |
| B | G4014-1616L-3T17DX18-P | Left Hand | - | G4014 | Side Clamping Screw | DX | - | - | - | 388.44 | |
| C | G4014-1616L-2T12DX18 | Left Hand | - | G4014 | Side Clamping Screw | DX | - | - | - | 256.22 | |
| D | G4014-1616R-3T17DX18-P | Right Hand | - | G4014 | Side Clamping Screw | DX | - | - | - | 388.44 | |
| E | G4014-1616R-3T17DX18 | Right Hand | - | G4014 | Side Clamping Screw | DX | - | - | - | 256.22 |
