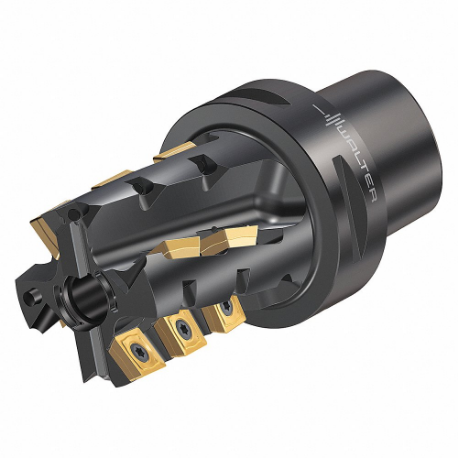

WALTER TOOLS M4258-050-C6-02-50-B 7457858 Indexable Square End Mill, 1 969/1000 Inch Max. Cutting Dia, Taper, Coolant Through

Item: CU8EPV
Model: M4258-050-C6-02-50-B
23 In Stock

Ships within 2 days via

£3038.28
5.00% off
£2886.36/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Specifications

Ansi Code M4258-050-C6-02-50-B
Coolant Fed Coolant Through
Cutting Application Shoulder Milling
Cutting Depth 2.047"
Features 2 Or 4 Cutting Edges Per Indexable Insert, Basic Body For Porcupine Milling Cutters
Iso Number M4258-050-C6-02-50-B
Max. Cutting Dia. 1.969"
Max. Speed 17300 RPM
Overall Length 4.976"
Shank Dia. 2.48"
Shank Type Taper
Shank Type - Machining Taper
Side Cutting Edge Angle 90°
Taper Shank Size C6
Toolholder Style M4258
Connection Dia. 2 12/25"
Cutting Edge Dia. 1.969"
Cutting Edge Length 2.047"
Max. Projection Length 3.346"
No. Of Indexable Inserts 10
No. Of Teeth 2
Usable Length 2.441"

Product Details

Shipping Information

Height 2.54
Length 12.64
Width 2.54
Country Of Origin DE
Weight 1.150600
