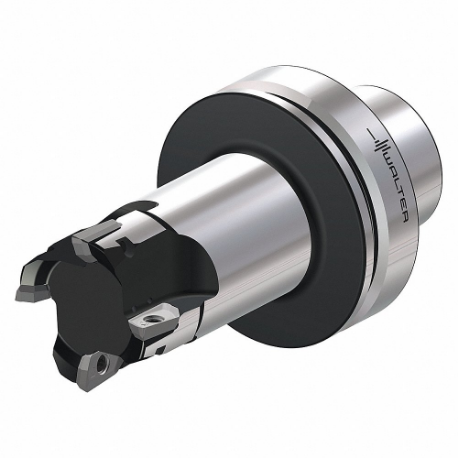

WALTER TOOLS M2331-050-H80F-04-15-MA 7454314 Indexable Square End Mill, 1 969/1000 Inch Max. Cutting Dia, Taper, 3.1500 Inch Size

Item: CU8EPT
Model: M2331-050-H80F-04-15-MA
25 In Stock

Ships within 2 days via

£2901.9
5.00% off
£2756.81/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Specifications

Ansi Code M2331-050-H80F-04-15-MA
Cutting Application Center Cutting, Ramping
Cutting Depth 3 3/20"
Depth Of Cut 3.15"
Head Projection Length 3.15"
Iso Number M2331-050-H80F-04-15-MA
Max. Cutting Dia. 1.969"
Overall Length 5.587"
Shank Dia. 3.15"
Shank Type Taper
Shank Type - Machining Taper
Taper Shank Size HSK-F 80
Toolholder Style M2331
Connection Dia. 3.15"
Cutting Edge Dia. 1.969"
Cutting Edge Length 0.591"
Max. Projection Length 4.331"
No. Of Indexable Inserts 4
No. Of Teeth 4
Usable Length 3.15"

Product Details

Shipping Information

Height 2.54
Length 14.19
Width 2.54
Country Of Origin DE
Weight 1.872000
