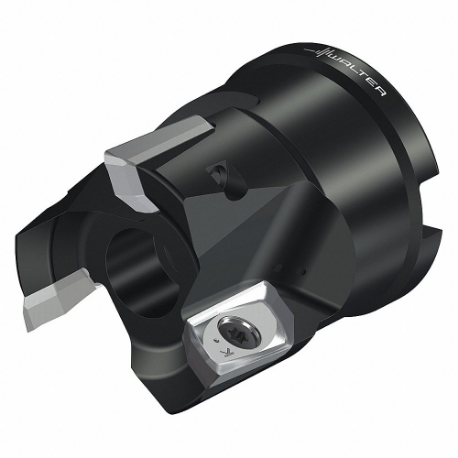

WALTER TOOLS M2331-050-B22-03-20 7454298 Indexable Face Mill, 0.8660 Inch Arbor Dia, 90 Deg. Side Cutting Edge Angle

Item: CU8HWX
Model: M2331-050-B22-03-20
16 In Stock

Ships within 2 days via

£1295.36
5.00% off
£1230.6/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Specifications

Ansi Code M2331-050-B22-03-20
Arbor Dia. 0.866"
Coolant Fed Coolant Through
Cutting Application Ramping
Cutting Depth 0.787"
Iso Number M2331-050-B22-03-20
Max. Speed 34000 RPM
Min. Cutting Dia. 1.969"
Number Of Inserts 3
Overall Length 2.362"
Side Cutting Edge Angle 90°
Standard Logo iso.png
Standards Iso 6462-A (Hexagon Socket Head Cap Screw)
Connection Dia. 0.866"
Cutting Edge Dia. 1.969"
Cutting Edge Length 0.787"
Max. Projection Length 2.362"
No. Of Indexable Inserts 3
No. Of Teeth 3

Product Details

Indexable Face Mill

Shipping Information

height 2.54
length 6
width 2.54
country of origin PL
weight 0.418500
