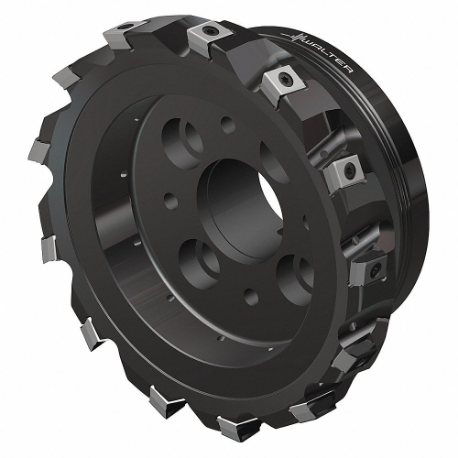

WALTER TOOLS F5141.B32.100.Z13.12 6229470 Indexable Face Mill, 3.9370 Inch Max. Cutting Dia, 1.2600 Inch Arbor Dia
Item: CU8JNX
Model: F5141.B32.100.Z13.12
24 In Stock
Ships within 2 days via
5.00% off
£2107.9/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Specifications
| Ansi Code | F5141.B32.100.Z13.12 |
|---|---|
| Arbor Dia. | 1.26" |
| Coolant Fed | Coolant Through |
| Cutting Application | Shoulder Milling |
| Cutting Depth | 0.472" |
| Hub Outside Dia. | 3.15" |
| Iso Number | F5141.B32.100.Z13.12 |
| Max. Cutting Dia. | 3.937" |
| Max. Speed | 14200 RPM |
| Overall Length | 1.969" |
|---|---|
| Standards | Iso 6462-A (Hexagon Socket Head Cap Screw) |
| Connection Dia. | 1.26" |
| Cutting Edge Dia. | 3.937" |
| Cutting Edge Length | 0.472" |
| Max. Projection Length | 1.969" |
| No. Of Indexable Inserts | 13 |
| No. Of Teeth | 13 |
Product Details
Shipping Information
| Height | 2.54 |
|---|---|
| Length | 5 |
| Width | 2.54 |
| Country Of Origin | PL |
|---|---|
| Weight | 2.655000 |
Related Products
| Style | Model | Coolant Fed | Overall Length | Arbor Dia. | Side Cutting Edge Angle | Max. Cutting Dia. | Insert Shape | Depth Of Cut | Cutting Depth | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | F5141.B40.160.Z13.12 | Coolant Through | 63 mm | 40 mm | 90° | 160 mm | - | 0.472" | - | 2,475.89 | |
| B | F5141.UB38.152.Z13.12 | Coolant Through | 2.48" | 1 1/2" | 90° | 6" | - | 0.472" | - | 2,475.89 | |
| C | M5130-050-B22-06-15 | Coolant Through | 1.575" | 0.866" | 90° | - | - | - | 0.591" | 933.25 | |
| D | M5130-063-B22-11-05 | Coolant Through | 1.575" | 0.866" | 90° | - | - | - | 0.197" | 1,264.94 | |
| E | M2136-063-B22-08-06 | Non Coolant Through | 1.969" | 0.866" | 90° | - | - | - | 0.256" | 1,716.37 | |
| C | M5130-054-B22-03-15 | Coolant Through | 1.575" | 0.866" | 90° | - | - | - | 0.591" | 811.02 | |
| D | M5130-063-B22-14-05 | Coolant Through | 1.575" | 0.866" | 90° | - | - | - | 0.197" | 1,335.95 |
