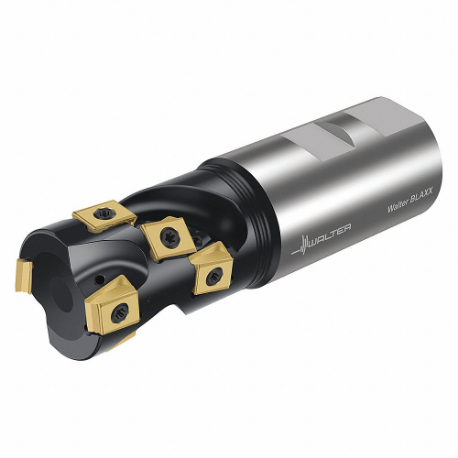

WALTER TOOLS F5138.UW38.038.Z02.45 6365036 Indexable Square End Mill, 1 1/2 Inch Max. Cutting Dia, Weldon Flat, Coolant Through

Item: CU8ELG
Model: F5138.UW38.038.Z02.45
21 In Stock

Ships within 2 days via

£1727.71
5.00% off
£1641.34/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Ansi Code F5138.UW38.038.Z02.45
Coolant Fed Coolant Through
Cutting Application Shoulder Milling
Depth Of Cut 1.772"
Features 4 Cutting Edges Per Indexable Insert, Full Effective Design, Tangential Arrangement
Iso Number F5138.UW38.038.Z02.45
Max. Cutting Dia. 1 1/2"
Max. Speed 23100 RPM
Overall Length 5.315"
Shank Dia. 1 1/2"
Shank Type Weldon
Shank Type - Machining Weldon Flat
Side Cutting Edge Angle 90°
Standard Logo din.png
Standards Din1835-B
Toolholder Style F5138
Connection Dia. 1 1/2"
Cutting Edge Dia. 1 1/2"
Cutting Edge Length 1.772"
Length 5.315"
Max. Projection Length 1.969"
No. Of Indexable Inserts Face 2
No. Of Indexable Inserts Peripheral 6
No. Of Teeth 2

Product Details

Square End Mill

Shipping Information

height 2.54
length 13.5
width 2.54
country of origin DE
weight 0.959400
