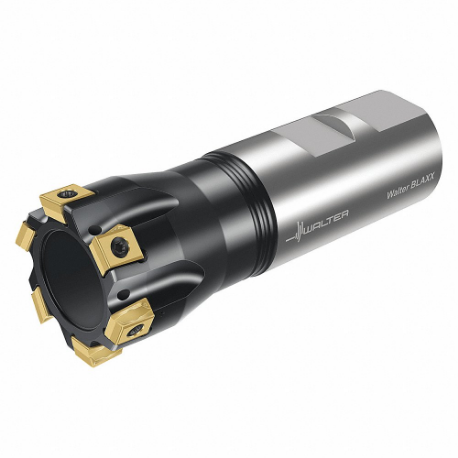

| Ansi Code | F5041.W32.040.Z06.08 |
|---|---|
| Coolant Fed | Coolant Through |
| Cutting Application | Shoulder Milling |
| Cutting Depth | 0.315" |
| Iso Number | F5041.W32.040.Z06.08 |
| Max. Cutting Dia. | 1.575" |
| Max. Speed | 31300 RPM |
| Overall Length | 4.331" |
| Shank Dia. | 1.26" |
| Shank Type | Weldon |
| Shank Type - Machining | Weldon Flat |
| Standard Logo | din.png |
|---|---|
| Standards | Din1835-B |
| Toolholder Style | F5041 |
| Connection Dia. | 1.26" |
| Cutting Edge Dia. | 1.575" |
| Cutting Edge Length | 0.315" |
| Length | 4.331" |
| Max. Projection Length | 1.929" |
| No. Of Indexable Inserts | 6 |
| No. Of Teeth | 6 |
Square End Mill
| height | 2.54 |
|---|---|
| length | 11 |
| width | 2.54 |
| country of origin | PL |
|---|---|
| weight | 0.783900 |
| Style | Model | Max. Cutting Dia. | Overall Length | Side Cutting Edge Angle | Depth Of Cut | Toolholder Style | Cutting Depth | Max. Speed | Connection Size | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | M2131.038-T36-03-15 | 1 1/2" | 3.378" | - | - | M2131 | 0.591" | 33500 RPM | T36 | 986.39 | |
| B | M5130.038-T36-10-05 | 1 1/2" | 2 3/4" | - | - | M5130 | - | - | T36 | 932.59 | |
| B | M5130.038-T36-07-05 | 1 1/2" | 2 3/4" | - | - | M5130 | - | - | T36 | 863.12 | |
| C | M5130.038-T36-04-15 | 1 1/2" | 2.878" | - | - | M5130 | - | - | T36 | 755.93 | |
| C | M5130.038-T36-03-15 | 1 1/2" | 2.878" | - | - | M5130 | - | - | T36 | 719.73 | |
| D | M2131.038-A31-03-15-L | 1 1/2" | 7.008" | - | - | M2131 | 0.591" | 15800 RPM | - | 1,130.93 | |
| E | M4791.038-W31-01-12 | 1 1/2" | 5 1/2" | - | - | M4791 | 3.022" | - | - | 623.31 |
