| Ansi Code | F4045.B40.160.Z20.06 |
|---|---|
| Arbor Dia. | 1.575" |
| Coolant Fed | Non Coolant Through |
| Cutting Application | Face Milling |
| Cutting Depth | 0.236" |
| Hub Outside Dia. | 3.543" |
| Insert Shape | Heptagon |
| Iso Number | F4045.B40.160.Z20.06 |
| Max. Cutting Dia. | 6.803" |
| Max. Speed | 4000 RPM |
| Min. Cutting Dia. | 6.299" |
| Number Of Inserts | 20 |
|---|---|
| Overall Length | 2 12/25" |
| Side Cutting Edge Angle | 0° |
| Standard Logo | iso.png |
| Standards | Iso 6462-C (4 Bolts) |
| Connection Dia. | 1.575" |
| Cutting Edge Dia. | 6.299" |
| Cutting Edge Length | 0.236" |
| Functional Length | 2 12/25" |
| No. Of Indexable Inserts | 20 EA |
| No. Of Teeth | 20 |

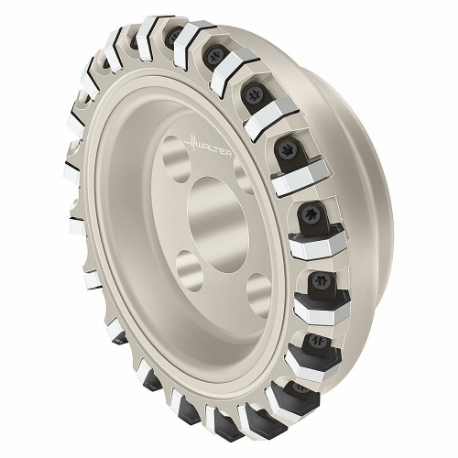

Indexable Face Mill
| height | 2.54 |
|---|---|
| length | 6.3 |
| width | 2.54 |
| country of origin | DE |
|---|---|
| weight | 6.254100 |
| Style | Model | Coolant Fed | Overall Length | Arbor Dia. | Side Cutting Edge Angle | Max. Cutting Dia. | Insert Shape | Depth Of Cut | Cutting Depth | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | F5141.B40.160.Z13.12 | Coolant Through | 63 mm | 40 mm | 90° | 160 mm | - | 0.472" | - | 2,475.89 | |
| B | F5141.UB38.152.Z13.12 | Coolant Through | 2.48" | 1 1/2" | 90° | 6" | - | 0.472" | - | 2,475.89 | |
| C | M5130-050-B22-06-15 | Coolant Through | 1.575" | 0.866" | 90° | - | - | - | 0.591" | 933.25 | |
| D | M5130-063-B22-11-05 | Coolant Through | 1.575" | 0.866" | 90° | - | - | - | 0.197" | 1,264.94 | |
| E | M2136-063-B22-08-06 | Non Coolant Through | 1.969" | 0.866" | 90° | - | - | - | 0.256" | 1,716.37 | |
| C | M5130-054-B22-03-15 | Coolant Through | 1.575" | 0.866" | 90° | - | - | - | 0.591" | 811.02 | |
| D | M5130-063-B22-14-05 | Coolant Through | 1.575" | 0.866" | 90° | - | - | - | 0.197" | 1,335.95 |
