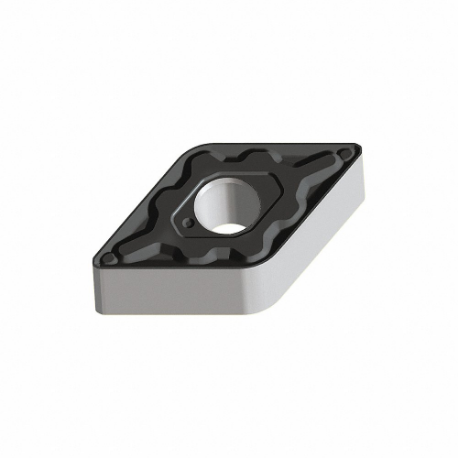

WALTER TOOLS DNMG110408-NM WPP10S Diamond Turning Insert, Neutral, 3/16 Inch Thick, 1/32 Inch Corner Radius

Item: CU9MUP
Model: DNMG110408-NM WPP10S
29 In Stock

Ships within 2 days via

£37.74
5.00% off
£35.86/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Specifications

Ansi Code DNMG332-NM WPP10S
Chip-breaker Yes
Chip-breaker Code NM
Clearance Angle 0°
Corner Radius 1/32"
Cutting Application Turning
Cutting Depth 0.8 mm to 3 mm
Cutting Direction Neutral
Cutting Edge Length 11.63 mm
Finish - Machining Ticn+Al2O3+Ticn
Included Angle 55°
Inscribed Circle 3/8"
Insert Code DNMG332
Insert Holding Type Straight Hole
Insert Style DNMG
Iso Number DNMG110408-NM WPP10S
Manufacturer Grade Wpp10S
Material Carbide
Material - Machining Carbide
Measurement System Fractional Inch
Number Of Cutting Edges 2
Primary Material Application Steel
Primary Material Application Iso Code P
Rake Negative
Shape Rhombic
System Of Measurement Imperial
Thickness 3/16"
Wiper Insert Yes

Product Details

Shipping Information

Height 2.54
Length 2.54
Width 2.54
Country Of Origin DE
Weight 0.058500
