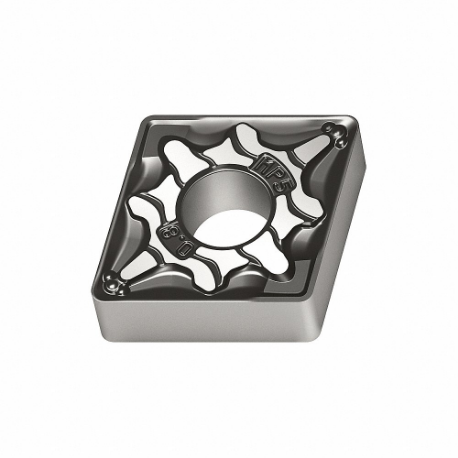

| Ansi Code | CNMG543-MP5 WPP05S |
|---|---|
| Chip-breaker | Yes |
| Chip-breaker Code | MP5 |
| Clearance Angle | 0° |
| Corner Radius | 3/64" |
| Cutting Application | Turning |
| Cutting Depth | 1 mm to 7 mm |
| Cutting Direction | Neutral |
| Cutting Edge Length | 16.12 mm |
| Finish - Machining | Ticn+Al2O3+Ticn |
| Included Angle | 80° |
| Inscribed Circle | 5/8" |
| Insert Code | CNMG543 |
| Insert Holding Type | Straight Hole |
| Insert Style | CNMG |
| Iso Number | CNMG160612-MP5 WPP05S |
| Manufacturer Grade | Wpp05S |
| Material | Carbide |
|---|---|
| Material - Machining | Carbide |
| Measurement System | Fractional Inch |
| Number Of Cutting Edges | 2 |
| Primary Material Application | Steel |
| Primary Material Application Iso Code | P |
| Rake | Negative |
| Shape | Rhombic |
| System Of Measurement | Imperial |
| Thickness | 1/4" |
| Cutting Speed | 660 SFPM to 1120 SFPM |
| Dia. Of Inscribed Circle | 5/8" |
| Feed Rate | 0.012" to 0.02" |
| Insert Thickness | 1/4" |
| Major Clearance Angle | 0° |
| No. Of Cutting Edges | 4 |
| Radius | 0.047" |
Turning Insert
| height | 2.54 |
|---|---|
| length | 2.54 |
| width | 2.54 |
| country of origin | DE |
|---|---|
| weight | 0.198000 |
| Style | Model | Insert Code | Corner Radius | Clearance Angle | Cutting Direction | Insert Style | Thickness | Inscribed Circle | Chip-breaker Code | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | CCGT060202-X5 WTP35 | CCGT.5 | 0.008" | 7° | Neutral | CCGT | - | - | X5 | 34.46 | |
| A | CCGT060202-X5 WAK15 | CCGT.5 | 0.008" | 7° | Neutral | CCGT | - | - | X5 | 34.09 | |
| B | CCGT060202-X15 WTP35 | CCGT.5 | 0.008" | 7° | Neutral | CCGT | - | - | X15 | 34.46 | |
| B | CCGT060202-X15 WXM15 | CCGT.5 | 0.008" | - | Neutral | CCGT | - | - | X15 | 34.09 | |
| A | CCGT060204-X5 WTP35 | CCGT1 | 1/64" | 7° | Neutral | CCGT | - | - | X5 | 34.59 | |
| B | CCGT060204-X15 WXM15 | CCGT1 | 1/64" | - | Neutral | CCGT | - | - | X15 | 33.69 | |
| A | CCGT060204-X5 WXM15 | CCGT1 | 1/64" | 7° | Neutral | CCGT | - | - | X5 | 34.09 |
