WALTER TOOLS

See our 858 reviews on trustpilot

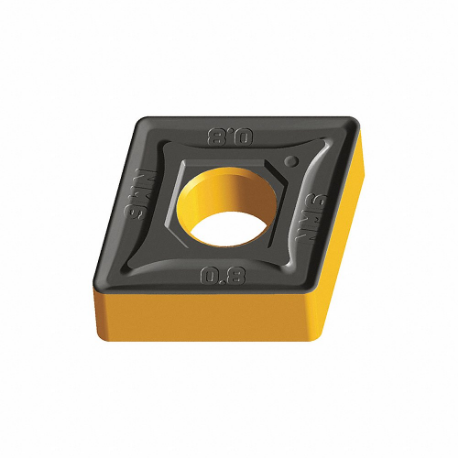

WALTER TOOLS CNMG120412-NM6 WPP20 Diamond Turning Insert, Neutral, 3/16 Inch Thick, 3/64 Inch Corner Radius

Item: CU9MAV
Model: CNMG120412-NM6 WPP20
In Stock
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Ansi Code CNMG433-NM6 WPP20
Chip-breaker Yes
Chip-breaker Code NM6
Clearance Angle 0°
Corner Radius 3/64"
Cutting Application Turning
Cutting Direction Neutral
Cutting Edge Length 12.9 mm
Finish - Machining Ticn+Al2O3+Tin
Included Angle 80°
Inscribed Circle 1/2"
Insert Code CNMG433
Insert Holding Type Straight Hole
Insert Style CNMG
Iso Number CNMG120412-NM6 WPP20
Manufacturer Grade WPP20
Material Carbide
Material - Machining Carbide
Measurement System Fractional Inch
Number Of Cutting Edges 2
Primary Material Application Steel
Primary Material Application Iso Code P
Rake Negative
Shape Rhombic
System Of Measurement Imperial
Thickness 3/16"
Depth Of Cut 0.047" to 0.197"
Dia. Of Inscribed Circle 1/2"
Feed Rate 0.012" to 0.02"
Insert Thickness 0.188"
Major Clearance Angle 0°
No. Of Cutting Edges 4
Radius 0.047"

Product Details

Shipping Information

Height 2.54
Length 2.54
Width 2.54
Country Of Origin DE
Weight 0.090000
