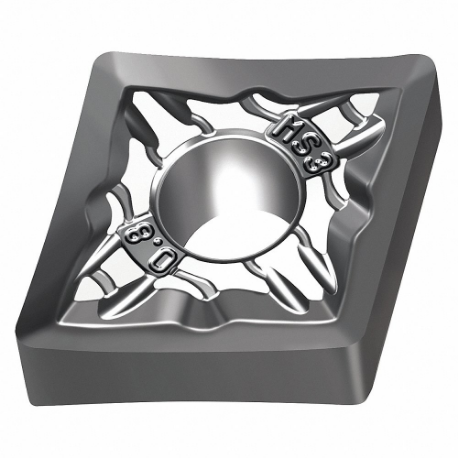

WALTER TOOLS CNMG120408-MS3 WSM30S 7469058 Diamond Turning Insert, Neutral, 3/16 Inch Thick, 1/32 Inch Corner Radius

Item: CU9LXB
Model: CNMG120408-MS3 WSM30S
23 In Stock

Ships within 2 days via

£29.58
5.00% off
£28.1/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Specifications

Ansi Code CNMG432-MS3
Chip-breaker Yes
Chip-breaker Code MS3
Clearance Angle 0°
Coating Process PVD
Corner Radius 1/32"
Cutting Direction Neutral
Cutting Edge Length 12.9 mm
Finish - Machining Tialn+Al2O3+(Al)
Included Angle 80°
Inscribed Circle 1/2"
Insert Code CNMG432
Insert Style CNMG
Iso Number CNMG120408-MS3
Manufacturer Grade Wsm30S
Material Carbide
Material - Machining Carbide
Measurement System Fractional Inch
Rake Negative
Shape Diamond
System Of Measurement Imperial
Thickness 3/16"
Through Hole Inside Dia. 13/64"
Cutting Speed 250 SFPM to 390 SFPM
Depth Of Cut 0.031" to 0.118"
Dia. Of Inscribed Circle 1/2"
Feed Rate 0.006" to 0.012"
Insert Thickness 0.188"
Major Clearance Angle 0°
No. Of Cutting Edges 4
Radius 0.031"

Product Details

Shipping Information

Height 2.54
Length 2.54
Width 2.54
Country Of Origin DE
Weight 0.090000
