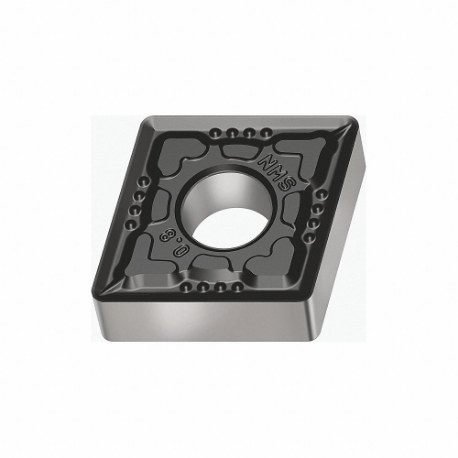

WALTER TOOLS CNMG120404-NMS WSM01 6876743 Diamond Turning Insert, Neutral, 3/16 Inch Thick, 1/64 Inch Corner Radius

Item: CU9LYU
Model: CNMG120404-NMS WSM01
9 In Stock

Ships within 2 days via

£29.14
5.00% off
£27.67/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Ansi Code CNMG431-NMS WSM01
Chip-breaker Yes
Chip-breaker Code NMS
Clearance Angle 0°
Corner Radius 1/64"
Cutting Application Turning
Cutting Depth 0.6 mm to 2.5 mm
Cutting Direction Neutral
Cutting Edge Length 12.9 mm
Finish Titanium Aluminum Nitride Coat
Finish - Machining TiAlN
Included Angle 80°
Inscribed Circle 1/2"
Insert Code CNMG431
Insert Holding Type Straight Hole
Insert Style CNMG
Iso Number CNMG120404-NMS WSM01
Manufacturer Grade Wsm01
Material Carbide
Material - Machining Carbide
Measurement System Fractional Inch
Number Of Cutting Edges 2
Primary Material Application Nickel, Stainless Steel, Titanium
Primary Material Application Iso Code M, S
Rake Negative
Shape Rhombic
System Of Measurement Imperial
Thickness 3/16"
Cutting Speed 330 SFPM to 520 SFPM
Dia. Of Inscribed Circle 1/2"
Feed Rate 0.004" to 0.009"
Insert Thickness 0.188"
Major Clearance Angle 0°
No. Of Cutting Edges 4
Radius 0.016"

Product Details

Turning Insert

Shipping Information

height 2.54
length 2.54
width 2.54
country of origin DE
weight 0.108000
