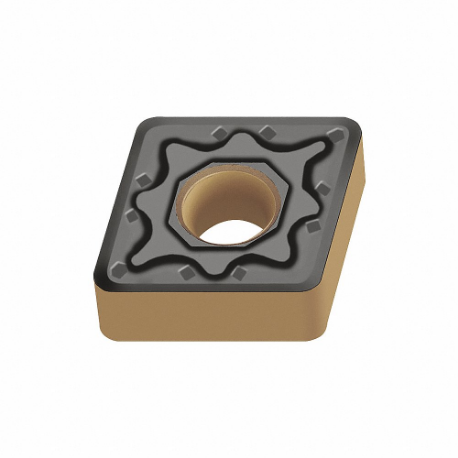

WALTER TOOLS CNMG120404-NM4 WAM30 Diamond Turning Insert, Neutral, 3/16 Inch Thick, 1/64 Inch Corner Radius

Item: CU9LYA
Model: CNMG120404-NM4 WAM30
17 In Stock

Ships within 2 days via

£31.49
5.00% off
£29.92/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Specifications

Ansi Code CNMG431-NM4 WAM30
Chip-breaker Code NM4
Clearance Angle 0°
Corner Radius 0.016"
Cutting Application Turning
Cutting Direction Neutral
Cutting Edge Length 12.9 mm
Included Angle 80°
Inscribed Circle 1/2"
Insert Code CNMG431
Insert Holding Type Straight Hole
Insert Style CNMG
Material Carbide
Number Of Cutting Edges 2
Primary Material Application Stainless Steel
Rake Negative
Shape Rhombic
System Of Measurement Imperial
Thickness 0.188"

Product Details

Shipping Information

Height 2.54
Length 2.54
Width 2.54
Country Of Origin DE
Weight 0.166500
