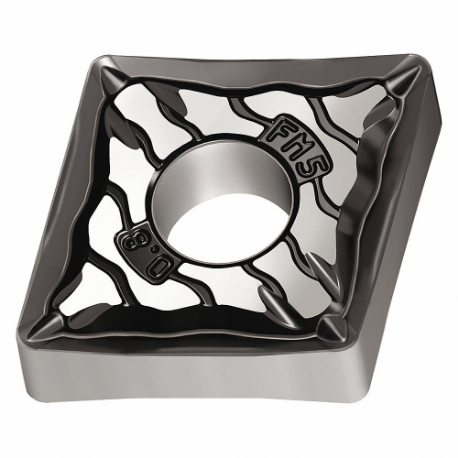

WALTER TOOLS CNMG120402-FM5 WSM10S 7091883 Diamond Turning Insert, Neutral, 3/16 Inch Thick, 0.20 mm Corner Radius

Item: CU9LVA
Model: CNMG120402-FM5 WSM10S
16 In Stock

Ships within 2 days via

£29.14
5.00% off
£27.67/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Specifications

Ansi Code CNMG4(3)0.5-FM5 WSM10S
Chip-breaker Yes
Chip-breaker Code FM5
Clearance Angle 0°
Corner Radius 0.2 mm
Cutting Application Turning
Cutting Depth 0.1 mm to 1 mm
Cutting Direction Neutral
Cutting Edge Length 12.9 mm
Finish - Machining Tialn+Al2O3+Al
Included Angle 80°
Inscribed Circle 1/2"
Insert Code CNMG43.5
Insert Holding Type Straight Hole
Insert Style CNMG
Iso Number CNMG120402-FM5 WSM10S
Manufacturer Grade Wsm10S
Material Carbide
Material - Machining Carbide
Measurement System Fractional Inch
Number Of Cutting Edges 4
Primary Material Application Nickel, Stainless Steel, Titanium
Primary Material Application Iso Code M, S
Rake Negative
Shape Rhombic
System Of Measurement Imperial
Thickness 3/16"
Cutting Speed 420 SFPM to 600 SFPM
Dia. Of Inscribed Circle 1/2"
Feed Rate 0.001" to 0.004"
Insert Thickness 0.188"
Major Clearance Angle 0°
No. Of Cutting Edges 4
Radius 0.008"

Product Details

Shipping Information

Height 2.54
Length 2.54
Width 2.54
Country Of Origin DE
Weight 0.090000
