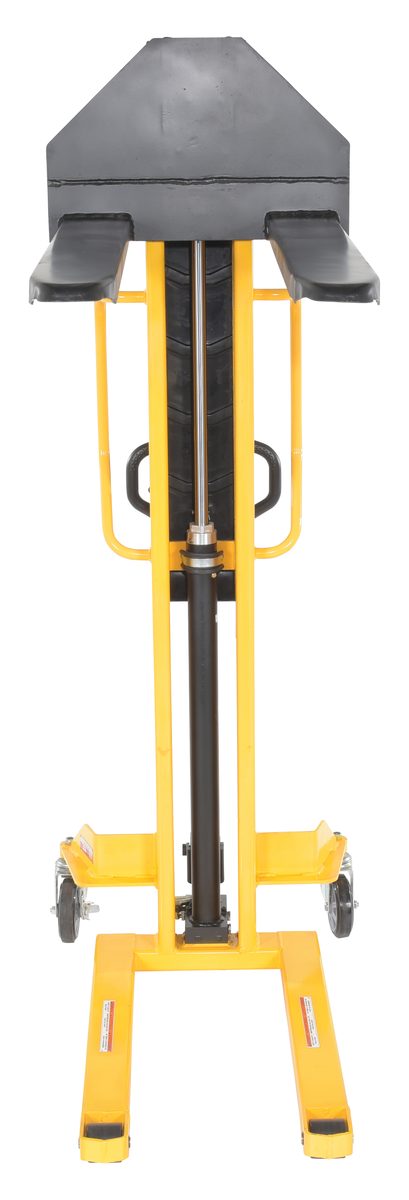

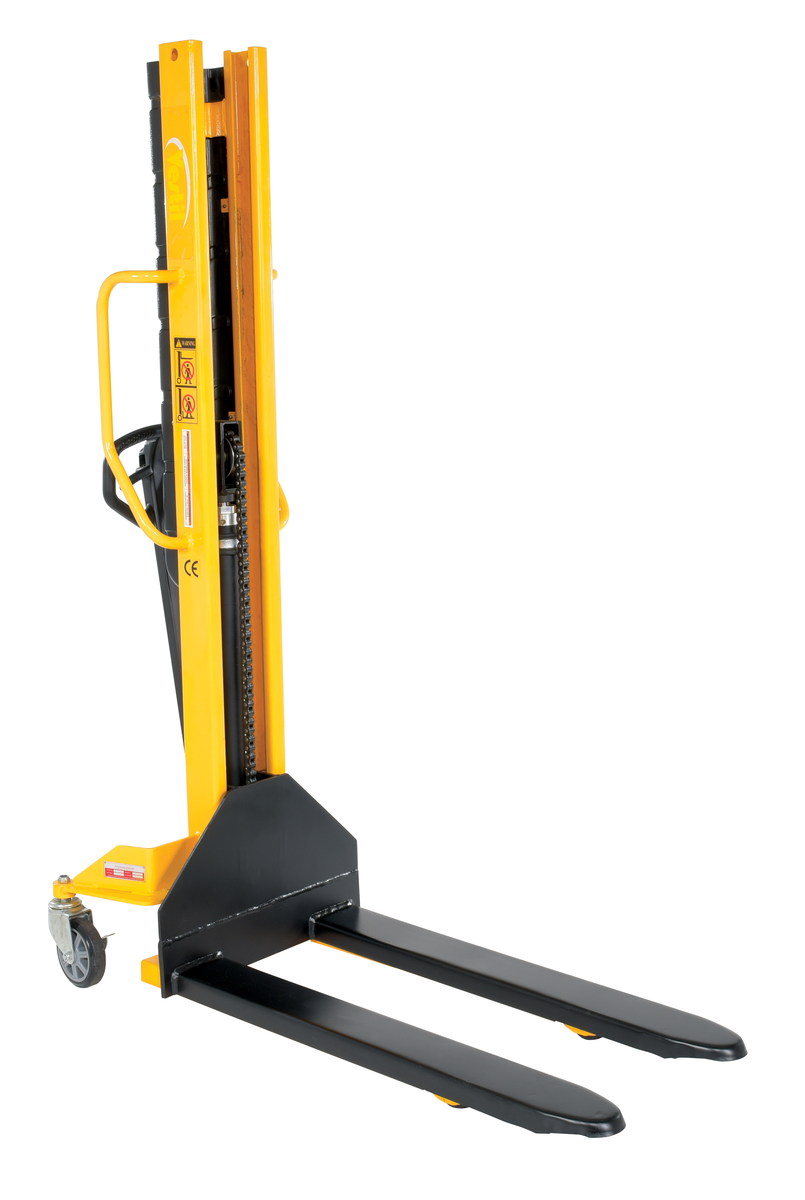

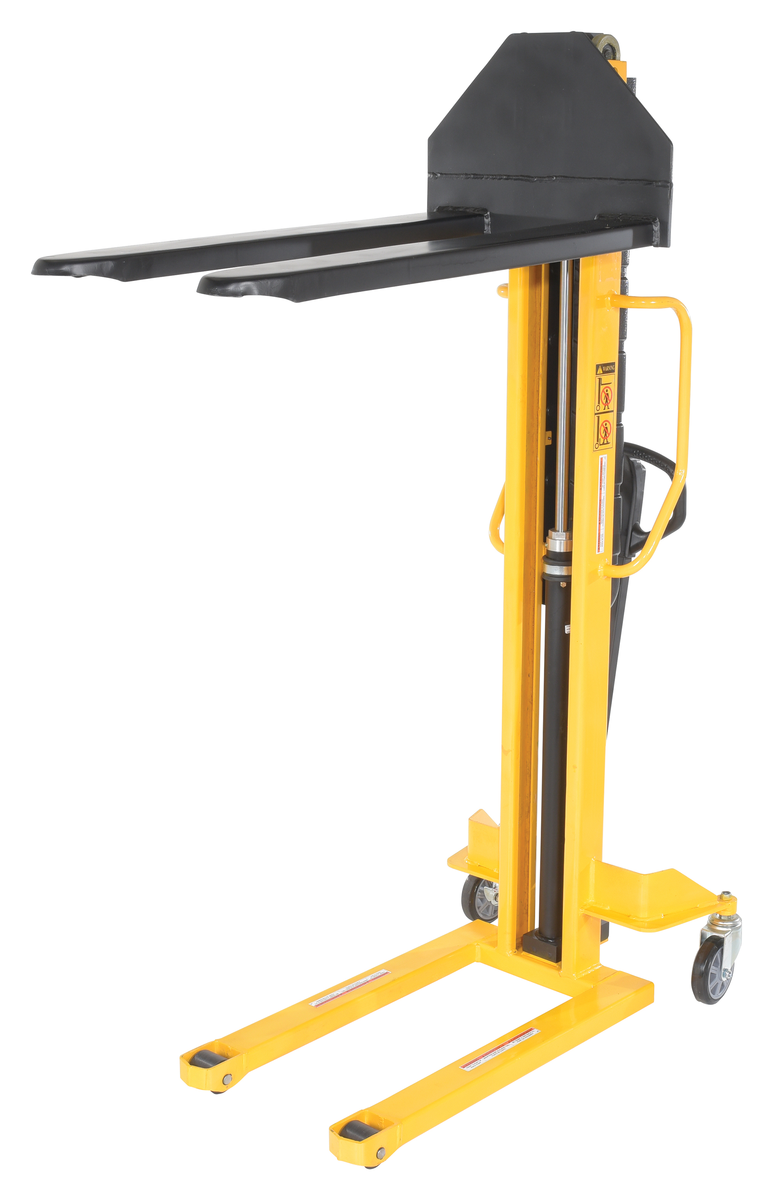

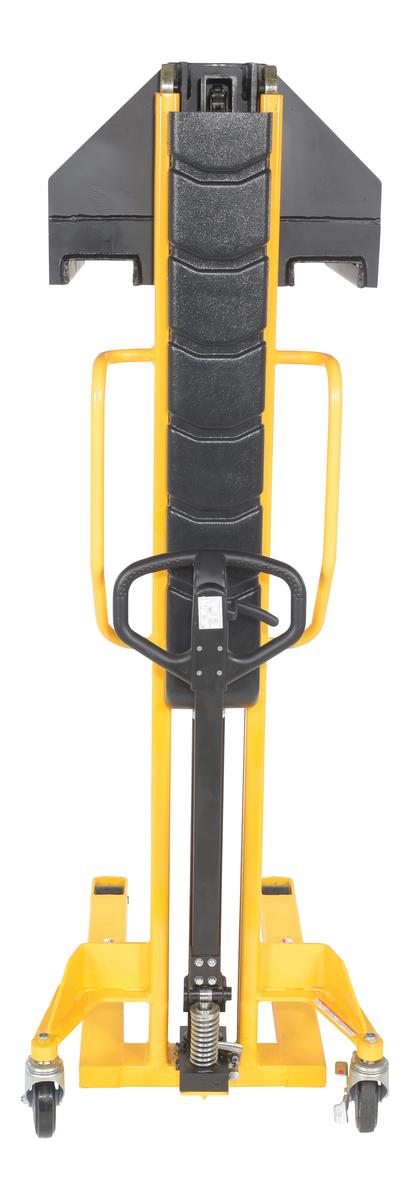

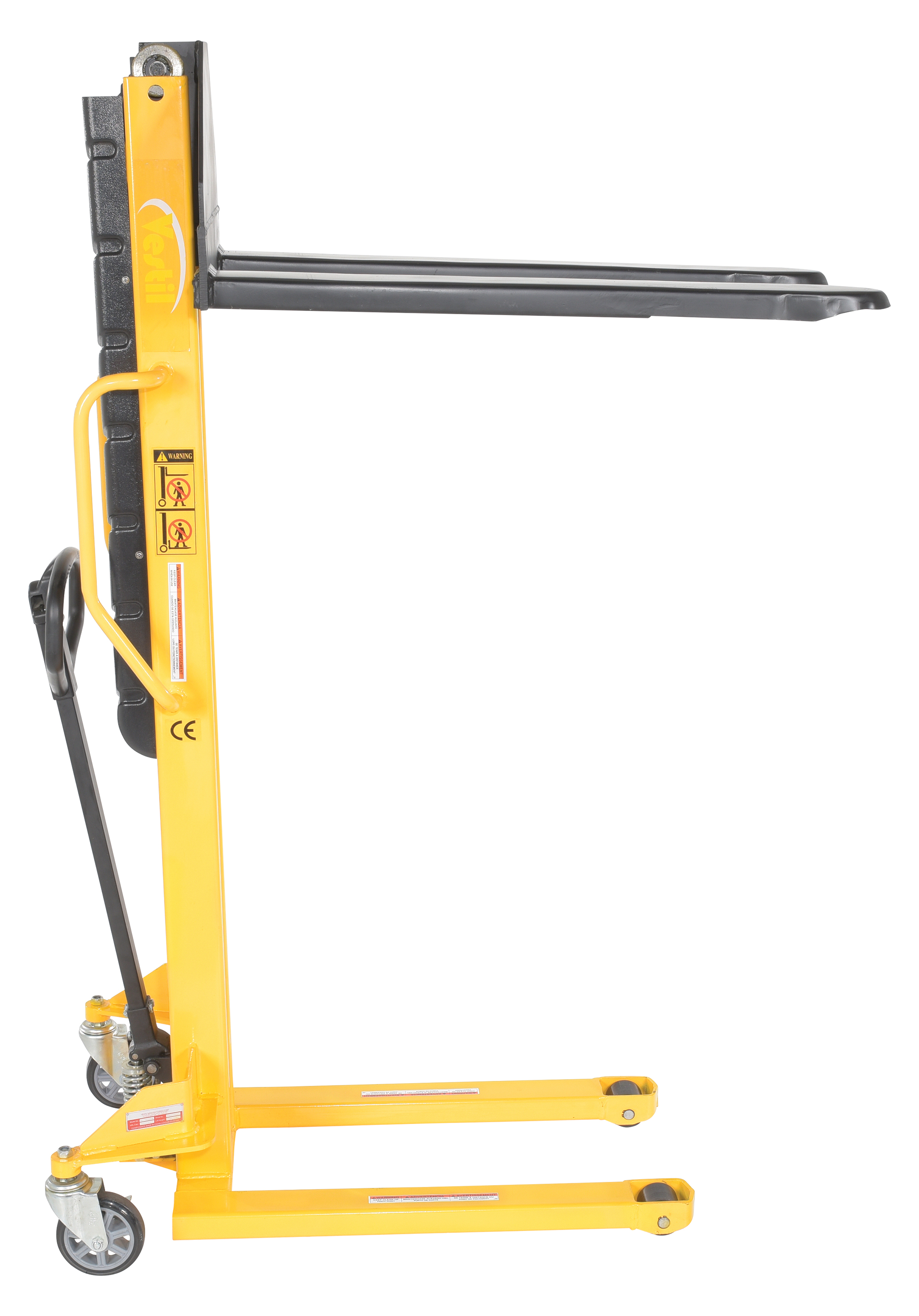

VESTIL VHPS-NM-1000-FF Steel Manual Stacker Narrow Mast Fixed Forks/Legs 1000 lb Capacity, Black/Yellow
Item: CE4RQT
Model: VHPS-NM-1000-FF
In Stock
£1891.38/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Adjustable Forks | No |
|---|---|
| Adjustable Legs | No |
| Assembled Depth | 61 13/16" |
| Assembled Height | 77 3/4" |
| Assembled Width | 27 3/8" |
| Assembly | Assembled |
| Batteries Included | No |
| Capacity | 1000 lbs. |
| Color Family | Black, Yellow |
| Compatible Products | VHPS-DK |
| Depth | 61.812" |
| Features | Narrow Mast To Fit In Compact Areas |
| Fork Length | 42" |
| Fork Width | 5.31" |
| Front Caster Dia. | 2.9" |
| Front Caster Material | Poly On Steel |
|---|---|
| Height | 77 3/4" |
| Leg Width | 5.31" |
| Lift Per Handle Pump | 3/4" |
| Material | Steel |
| Max. Lifting Height | 62" |
| Max. Travel Distance | 58 1/2" |
| Min. Lifting Height | 3 1/2" |
| Min. Width Between Forks | 21.63" |
| Min. Width Between Legs | 21.63" |
| Number Of Casters | 4 |
| Power Source | Manual |
| Rear Caster Dia. | 5.9" |
| Rear Caster Material | Poly On Steel |
| Width | 27.38" |
Product Details
Shipping Information
| Length | 157 |
|---|---|
| Width | 69.53 |
| Country Of Origin | US |
|---|---|
| Weight | 211.500000 |
Related Products
| Style | Model | Fork Length | Fork Width | Min. Lifting Height | Height | Front Caster Dia. | Rear Caster Dia. | Max. Travel Distance | Min. Width Between Forks | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

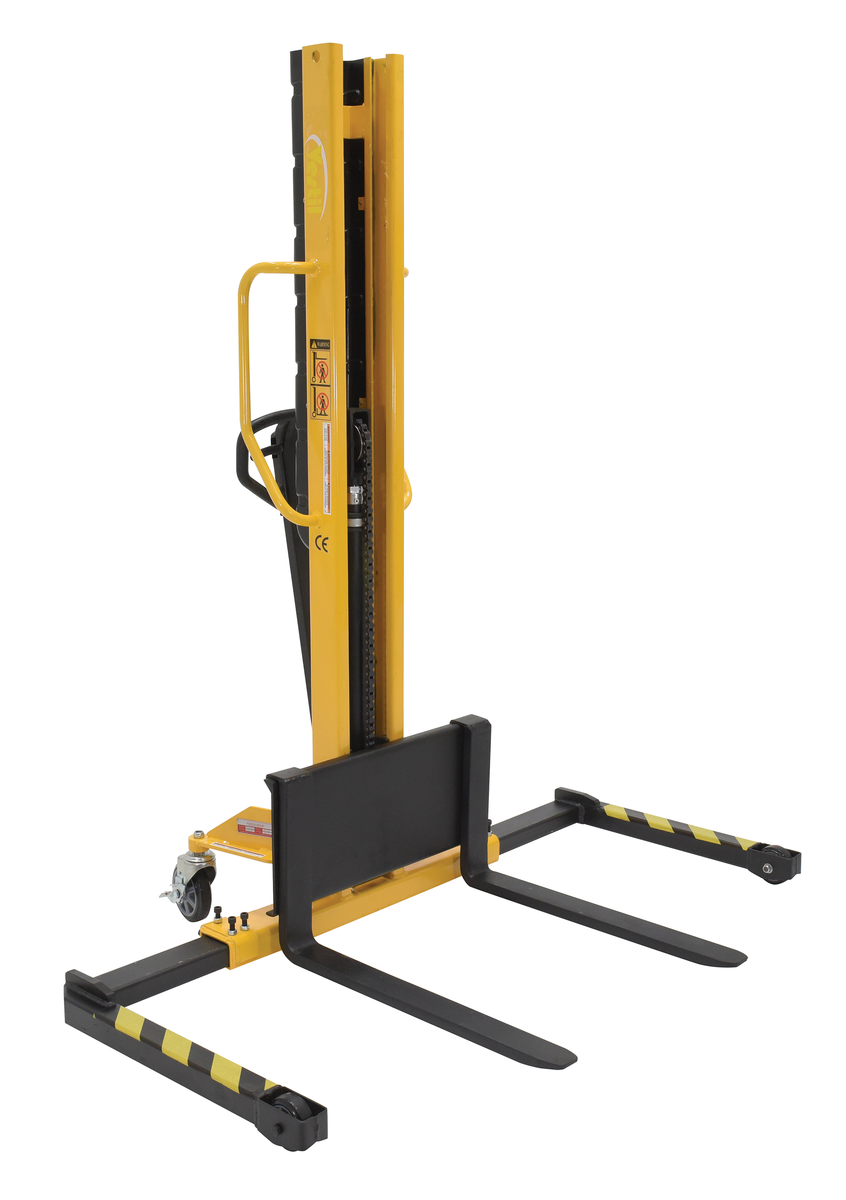

| A | VHPS-NM-1000-AA | 30" | 3.13" | 2.13" | 78.38" | 4" | 5" | 40 3/25" | 6 1/4" | 1,864.21 |
