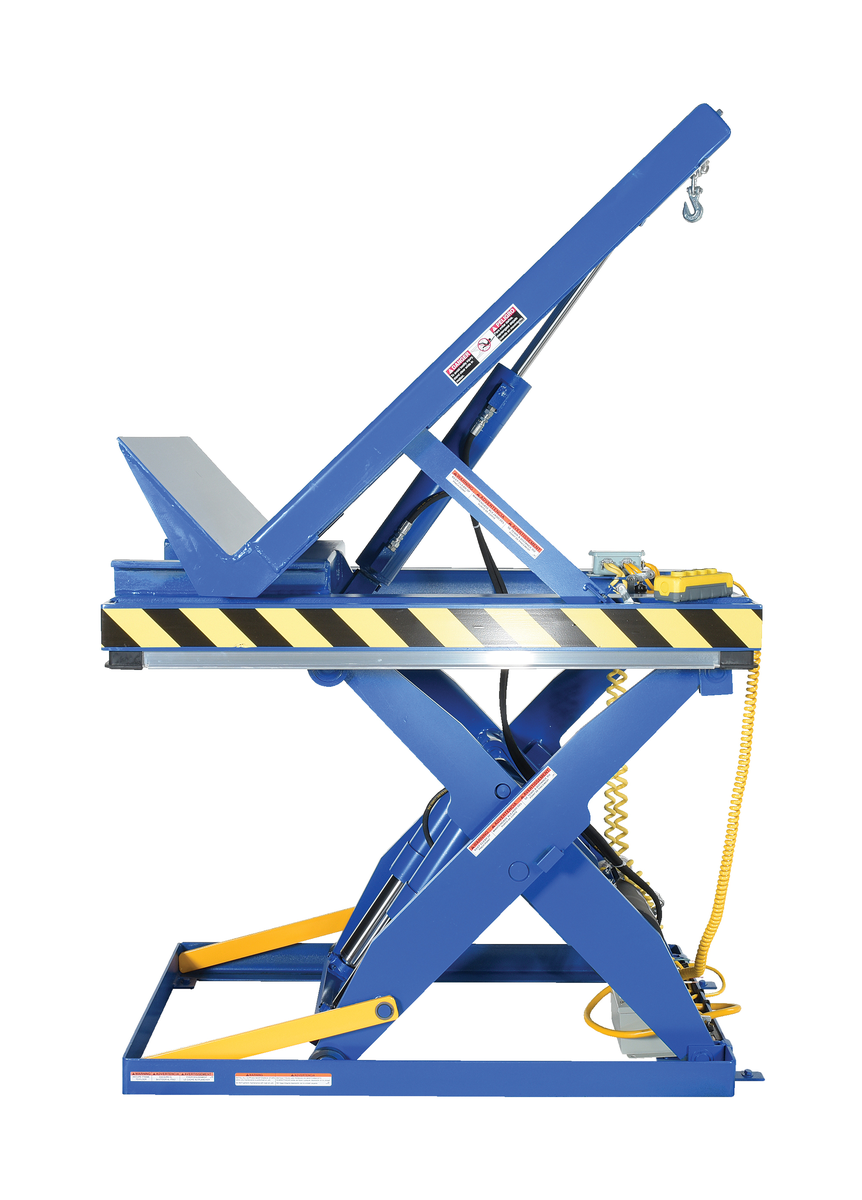

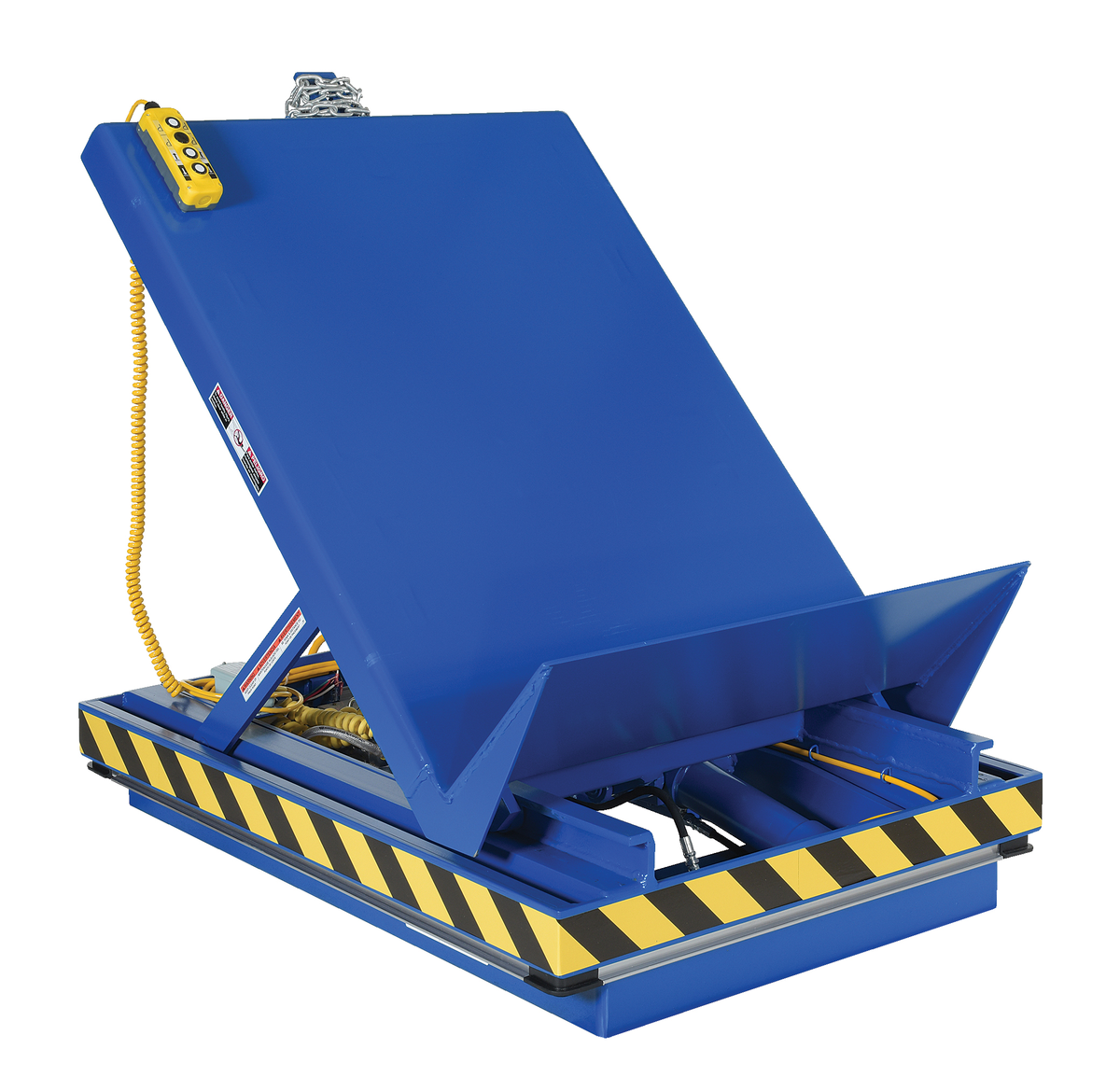

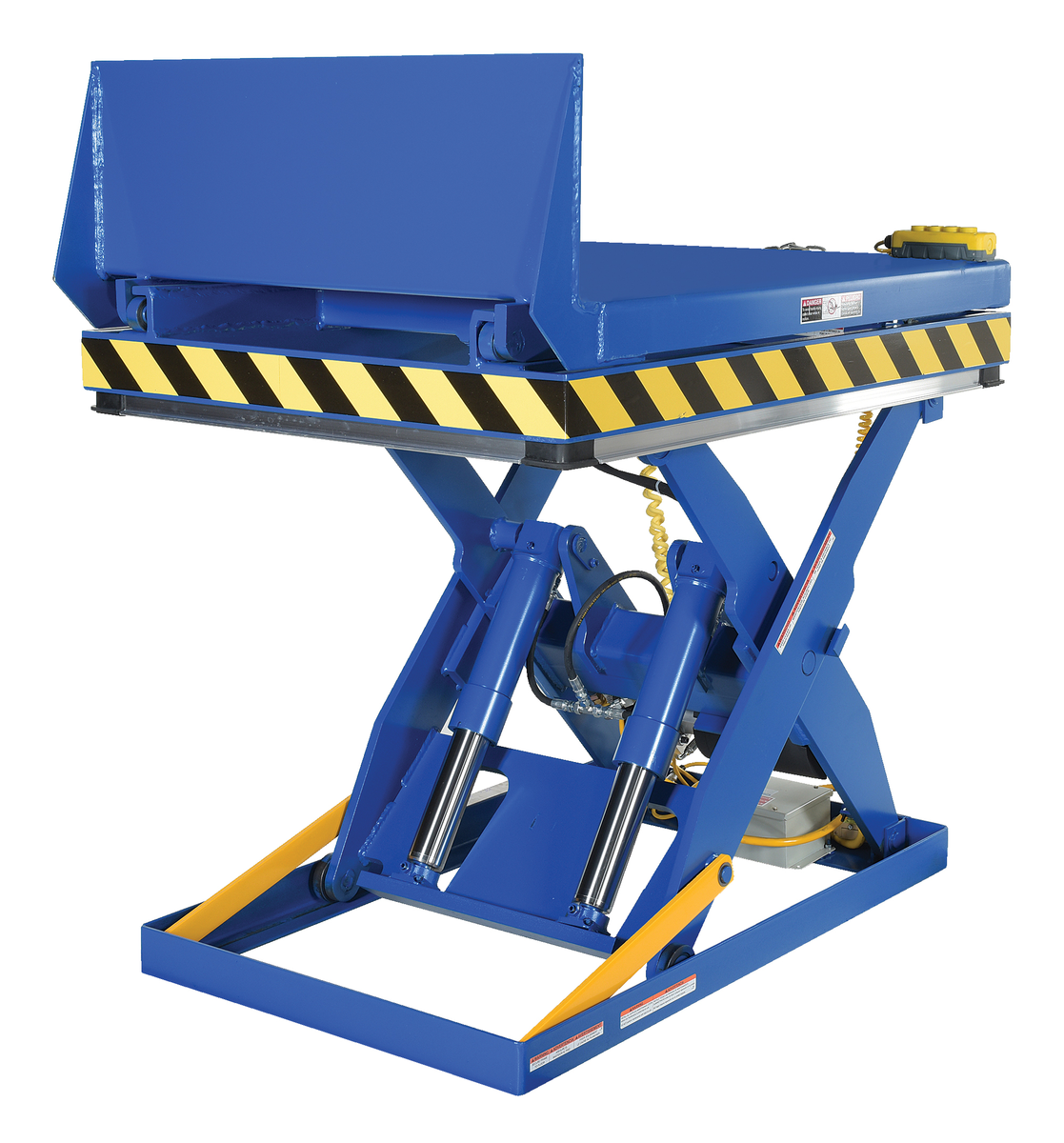

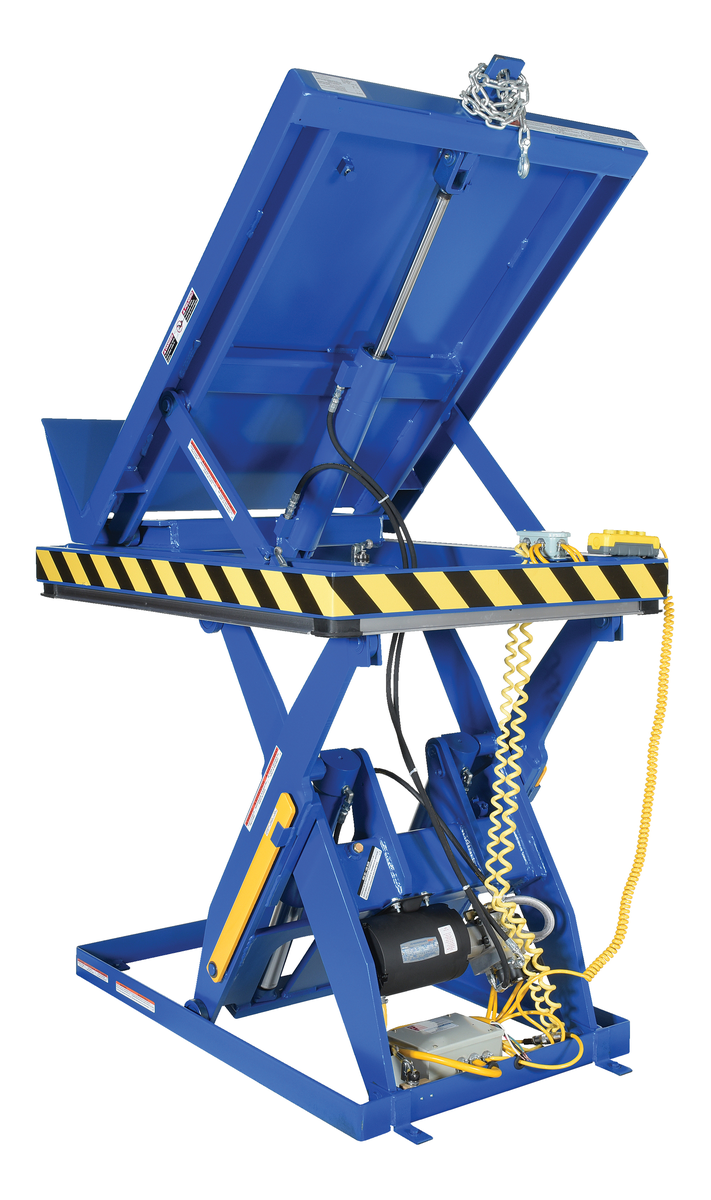

VESTIL EHLTT-3648-4-47 Steel Lift and End Tilt Scissor Table, 36 x 48 Inch, 4000 lb Capacity, Blue
Item: AG7RKE
Model: EHLTT-3648-4-47
In Stock
Get it by Wednesday, Apr 15
£10101.61/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
- Specifications
- Product Details
- Shipping Information
- Uses
- Working Mechanism
- Features
- Compatible Accessories
- Standards and Approvals
- Installation
- FAQ′s
- See Variants
Specifications
| Assembled Depth | 56" |
|---|---|
| Assembled Height | 23" |
| Assembled Width | 36" |
| Assembly | Assembled |
| Batteries Included | No |
| Color | Blue |
| Color Family | Blue |
| Control Pendant Cord Length | 8 ft. |
| End Tilt | 45° |
| Features | Restraining Chain And Lip Keep The Load In Place During Tilting |
| Height | 23" |
| Length | 53" |
| Lift Time Down | 13 sec. |
| Lift Time Up | 22 sec. |
| Lip Height | 12" |
| Load Capacity | 4000 lbs. |
|---|---|
| Lowered Height | 11" |
| Material | Steel |
| Max. Height | 36" |
| Motor Hp | 1 1/2 hp |
| Operation Type | Push Button, Electrical |
| Overload Protection | Yes |
| Phase | 3 |
| Platform Length | 48" |
| Power Source | Electric Corded |
| Raised Height | 47" |
| Tilt Lowered Time | 15 sec. |
| Tilt Raised Time | 27 sec. |
| Width | 36" |
Product Details
Scissor Lift Table
Shipping Information
| height | 68.58 |
|---|---|
| length | 111.76 |
| width | 139.7 |
| hs code | 8428900290 |
|---|---|
| country of origin | US |
| weight | 542.700000 |
Uses
Working Mechanism
Features
Compatible Accessories
Standards and Approvals
Installation
FAQ′s
Related Products
| Style | Model | Load Capacity | Platform Width | Height | Lift Time Down | Lift Time Up | Tilt Raised Time | Platform Length | Phase | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | EHLTT-3648-1-47 | 1000 lbs. | 36" | 23" | 13 sec. | 12 sec. | 27 sec. | 48" | 3 | 6,523.16 | |
| B | EHLTT-3648-2-47 | 2000 lbs. | 36" | 23" | 13 sec. | 12 sec. | 27 sec. | 48" | 3 | 6,585.66 | |
| C | EHLTT-3648-3-47 | 3000 lbs. | 36" | 23" | 13 sec. | 12 sec. | 27 sec. | 48" | 3 | 7,504.17 | |
| D | EHLTT-4848-1-47 | 1000 lbs. | 48" | 23" | 13 sec. | 12 sec. | 27 sec. | 48" | 3 | 6,733.13 | |
| E | EHLTT-4848-2-47 | 2000 lbs. | 48" | 23" | 13 sec. | 12 sec. | 27 sec. | 48" | 3 | 6,829.25 | |
| F | EHLTT-4848-3-47 | 3000 lbs. | - | 23" | 13 sec. | 12 sec. | 27 sec. | 48" | 3 | 7,911.22 | |
| G | EHLTT-4848-4-47 | 4000 lbs. | 48" | 23" | 13 sec. | 22 sec. | 27 sec. | 48" | 3 | 8,998.68 |
