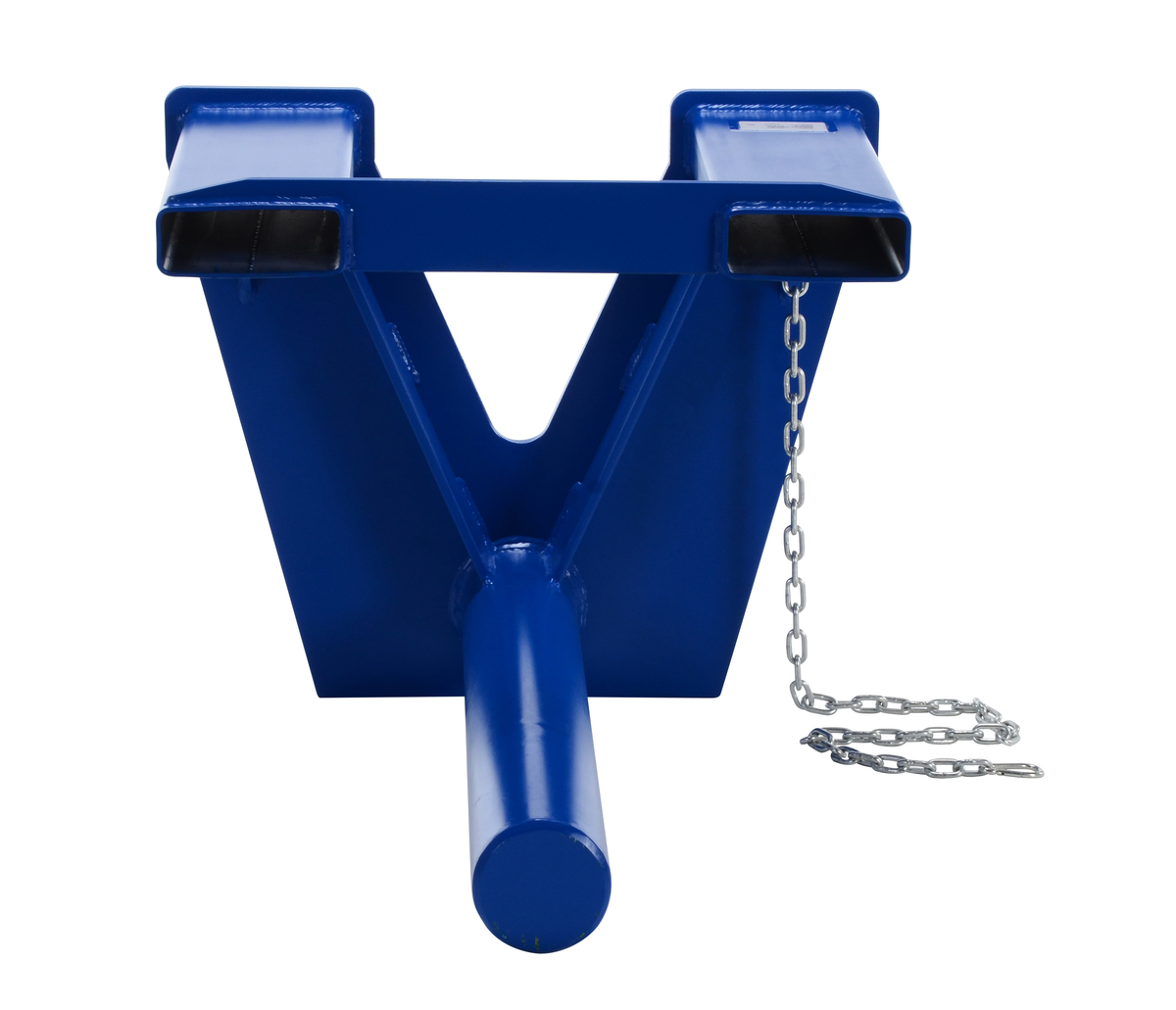

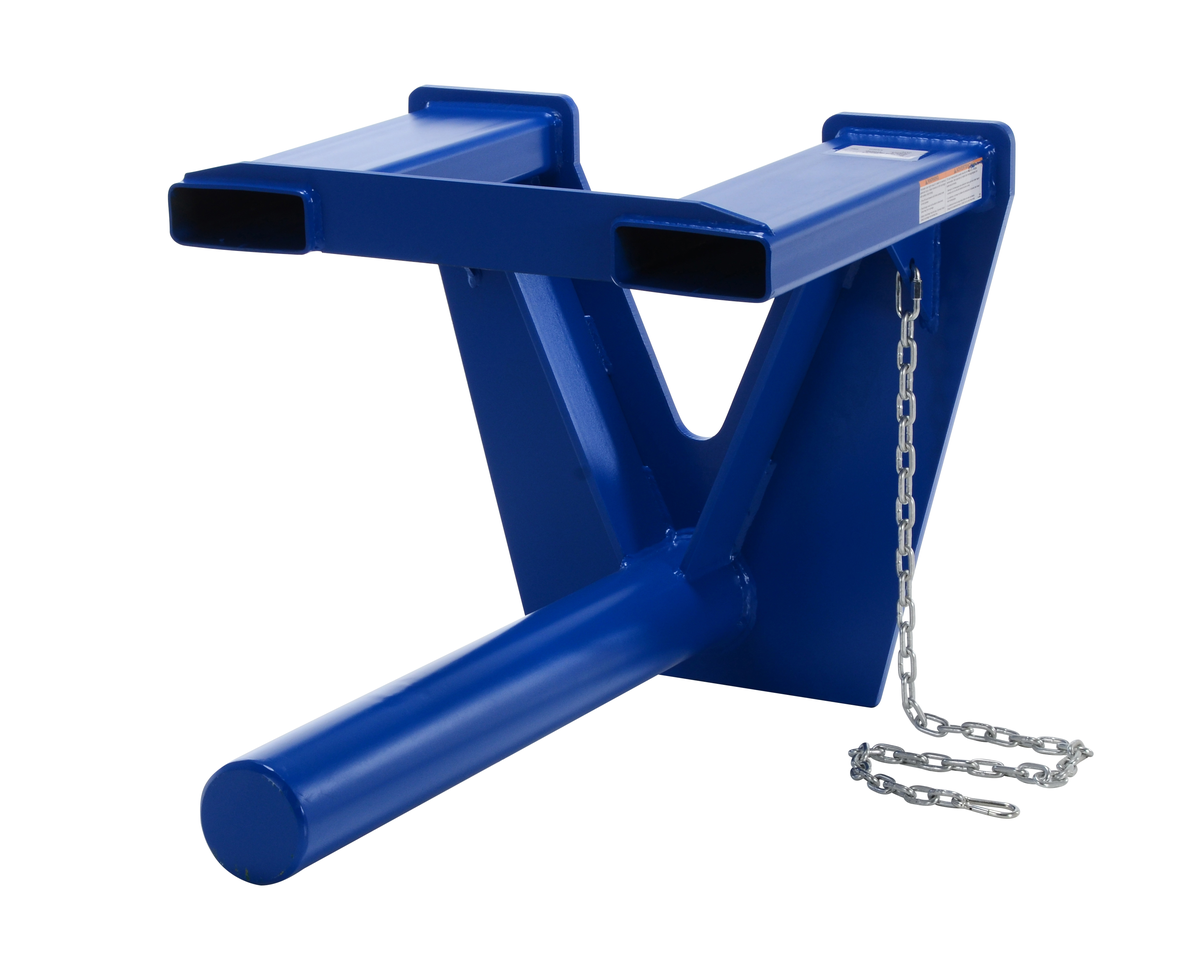

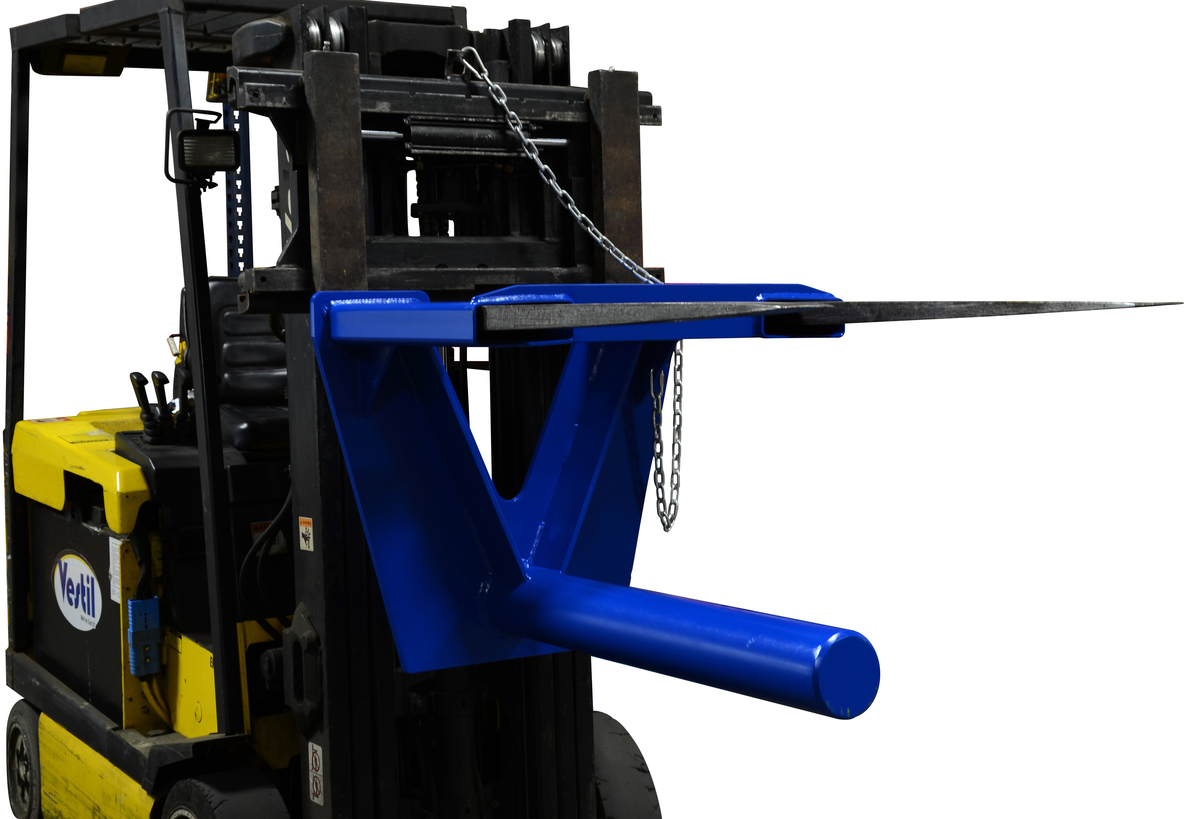

VESTIL CCF-36-5 Steel Coil Lifter Fork Mounted Inverted, 36 Inch, 5500 lb Capacity, Blue
Item: AE6NWK
Model: CCF-36-5
In Stock
Get it by ,
We deliver to your doorstep under DAP terms. Customs clearance is for your account
5.00% off
₹1450.900000
(ex. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
- Specifications
- Product Details
- Shipping Information
- Uses
- Working Mechanism
- Features
- Compatible Accessories
- Standards and Approvals
- Installation
- FAQ′s
- See Variants
Specifications
| Applicable Carriage Class | Class 2 |
|---|---|
| Assembled Depth | 42" |
| Assembled Height | 29 1/4" |
| Assembled Width | 34" |
| Assembly | Assembled |
| Batteries Included | No |
| Capacity | 5500 lbs. |
| Certification Indicator | D |
| Class Under Modification | Contact Taxonomy At Taxonomysupport@Syndigo.Com |
| Color | Blue |
| Color Family | Blue |
| Contains Hazardous Material Or Is Aerosol | No |
| Features | 24" Fork Pocket Centers |
| Fork Pocket Center | 24" |
| Fork Pocket Height | 2 1/2" |
| Fork Pocket Spacing | 24" |
| Fork Pocket Width | 7 1/2" |
| Height | 29 1/4" |
| Horizontal Center Of Gravity | 8 3/4" |
|---|---|
| Includes | Safety Restraint |
| Length | 42" |
| Load Capacity | 5500 lbs. |
| Material | Steel |
| Max. Coil Width | 17 1/2" |
| Maximum Load Capacity | 5500 lbs. |
| Mount Style | Fork |
| Mounting | Fork Mounted Inverted |
| Mounting Type | Inverted Fork |
| Origin Criterion | B |
| Pole Diameter | 5 5/8" |
| Pole Length | 36" |
| Product Type | Coil Ram |
| Ram Diameter | 5 5/8" |
| Usable Ram Length | 36" |
| Vertical Center Of Gravity | 15 3/8" |
| Width | 34" |
Product Details
Coil Lifting Ram
Shipping Information
| height | 78.74 |
|---|---|
| length | 93.98 |
| width | 86.36 |
| hs code | 8428900290 |
|---|---|
| country of origin | US |
| weight | 126.450000 |
Uses
Working Mechanism
Features
Compatible Accessories
Standards and Approvals
Installation
FAQ′s
Related Products
| Style | Model | Load Capacity | Pole Length | Capacity | Ram Diameter | Usable Ram Length | Horizontal Center Of Gravity | Vertical Center Of Gravity | Mounting | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | CCF-24-4 | 3000 lbs. | 24" | 3000 lbs. | 4 1/2" | 24" | 6 1/4" | 16 3/4" | Fork Mounted Inverted | 1,695.55 | |
| B | CCF-24-5 | 5500 lbs. | 24" | 5500 lbs. | 5 5/8" | 24" | 6 3/4" | 16 1/8" | Fork Mounted Inverted | 1,823.46 | |
| C | CCF-36-4 | 3000 lbs. | 36" | 3000 lbs. | 4 1/2" | 36" | 7 3/4" | 16 1/8" | Fork Mounted Inverted | 1,652.25 | |
| D | CCF-48-4 | 3000 lbs. | 48" | 3000 lbs. | 4 1/2" | 48" | 9 3/4" | 15 5/8" | Fork Mounted Inverted | 1,852.90 | |
| E | CCF-48-5 | 5500 lbs. | 48" | 5500 lbs. | 5 5/8" | 48" | 11 1/8" | 15 1/4" | Fork Mounted Inverted | 1,454.06 | |
| F | CCF-60-4 | 3000 lbs. | 60" | 3000 lbs. | 4 1/2" | 60" | 12 1/8" | 15 1/8" | Fork Mounted Inverted | 1,847.30 | |
| G | CCF-60-5 | 5500 lbs. | 60" | 5500 lbs. | 5 5/8" | 60" | 14" | 14 1/4" | Fork Mounted Inverted | 1,517.99 |
