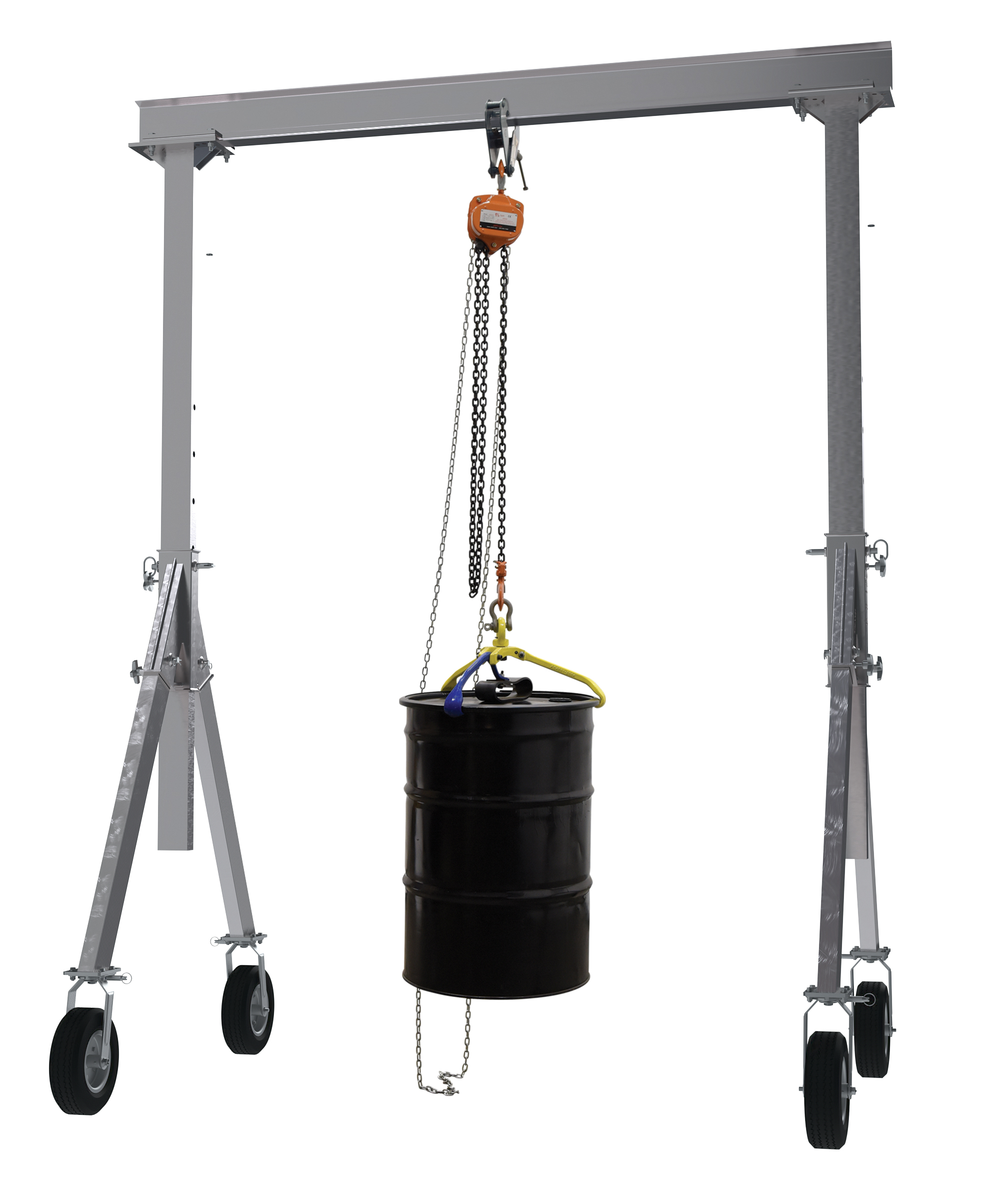

VESTIL AHA-15-10-8-PNU Aluminium Adjustable Height Gantry Crane with Pneumatic Caster, 10 x 8 ft, 1,500 lb Capacity, Silver
Item: AG7LDF
Model: AHA-15-10-8-PNU
In Stock
Get it by Thursday, Apr 16
£3677.38/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
- Specifications
- Product Details
- Shipping Information
- Uses
- Working Mechanism
- Features
- Compatible Accessories
- Standards and Approvals
- Installation
- FAQ′s
- See Variants
Specifications
| Adjustable Height | Yes |
|---|---|
| Adjustable Increments | 6" |
| Assembled Depth | 120" |
| Assembled Height | 110 1/4" |
| Assembled Width | 53 3/4" |
| Assembly | Assembly Required |
| Base Width | 53 3/4" |
| Beam Height | 6" |
| Capacity | 1500 lbs. |
| Caster Dia. | 12" |
| Caster Lock | Yes |
| Caster Material | Pneumatic |
| Caster Type | Four-Way Locking |
| Caster Width | 3 1/2" |
| Color | Silver |
| Color Family | Silver |
|---|---|
| Features | Heavy Duty Welded Aluminum Construction |
| Flange Width | 3.31" |
| Height | 110 1/4" |
| I Beam Length | 120" |
| Length | 120" |
| Material | Aluminum |
| Max. Clearance | 104" |
| Min. Clearance | 74" |
| Number Of Casters | 4 |
| Under I Beam Usable Height | 74" to 104" |
| Usable Beam Length | 96 1/4" |
| Usable Travel Distance | 96 1/4" |
| Width | 53 3/4" |
Product Details
Shipping Information
| Height | 40.64 |
|---|---|
| Length | 2.54 |
| Width | 71.12 |
| HS Code | 8426190000 |
|---|---|
| Country Of Origin | US |
| Weight | 123.750000 |
Uses
Working Mechanism
Features
Compatible Accessories
Standards and Approvals
Installation
FAQ′s
Related Products
| Style | Model | Height | Beam Height | I Beam Length | Max. Clearance | Usable Beam Length | Min. Clearance | Under I Beam Usable Height | Usable Travel Distance | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | AHA-15-10-10-PNU | 134 1/4" | 6" | 120" | 128" | 96 1/4" | 98" | 98" to 128" | 96 1/4" | 3,138.93 | |
| B | AHA-15-10-12-PNU | 156 1/4" | 6" | 120" | 150" | 96 1/4" | 120" | 120" to 150" | 96 1/4" | 3,259.29 | |
| C | AHA-15-12-10-PNU | 136 1/4" | 8" | 144" | 128" | 120 1/4" | 98" | 98" to 128" | 120 1/4" | 3,364.73 | |
| D | AHA-15-12-12-PNU | 158 1/4" | 8" | 144" | 150" | 120 1/4" | 120" | 120" to 150" | 120 1/4" | 3,485.09 | |
| E | AHA-15-12-8-PNU | 112 1/4" | 8" | 144" | 104" | 120 1/4" | 74" | 74" to 104" | 120 1/4" | 3,290.28 | |
| F | AHA-15-15-10-PNU | 136 1/4" | 8" | 180" | 128" | 156 1/4" | 98" | 98" to 128" | 156 1/4" | 3,768.82 | |
| G | AHA-15-15-12-PNU | 158 1/4" | 8" | 180" | 150" | 156 1/4" | 120" | 120" to 150" | 156 1/4" | 3,889.18 |
