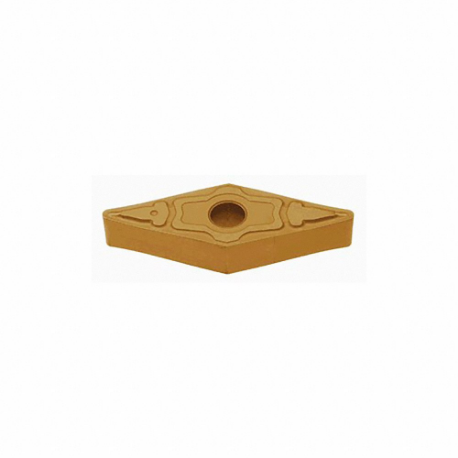

TUNGALOY 6781248 Turning Insert, Neutral/16 Inch Thick, 0.0130 Inch Corner Radius
Item: CU7DHW
Model: 6781248
23 In Stock
Ships within 2 days via
5.00% off
£32/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Ansi Code | VNMG160404-TS |
|---|---|
| Chip-breaker Code | TS |
| Chip-breaker Style | Yes |
| Coating Process | Chemical vapor deposition |
| Corner Radius | 0.013" |
| Cutting Application | Finishing |
| Cutting Depth | 0.5 mm to 1.5 mm |
| Cutting Direction | Neutral |
| Cutting Edge | Rounded |
| Cutting Edge Length | 0.656" |
| Cutting Material Coverage | Multi Mini Tip |
| Features | High Fracture Resistance |
| General Shape | Rhombic |
| Hole Type | Through Hole |
| Included Angle | 35° |
| Inscribed Circle | 3/8" |
|---|---|
| Insert Code | VNMG33 |
| Insert Holding Type | Straight Hole |
| Insert Style | VNMG |
| Material | Carbide |
| Number Of Cutting Edges | 2 |
| Primary Material Application | Cast Iron, Stainless Steel, Steel |
| Primary Material Application Iso Code | K, M, P |
| Rake | 0° |
| Shape | Rhombic |
| System Of Measurement | Metric |
| Thickness | 0.188" |
| Through Hole Inside Dia. | 3.81 mm |
| Width | 4.76 mm |
| Wiper Insert | Yes |
Product Details
Turning Insert
Shipping Information
| height | 2.54 |
|---|---|
| length | 2.54 |
| width | 2.54 |
|---|---|
| weight | 0.090000 |
Related Products
| Style | Model | Inscribed Circle | Thickness | Corner Radius | Insert Style | Chip-breaker Code | Cutting Direction | Insert Code | Number Of Cutting Edges | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 6843406 | 1/4" | 3/32" | 1/64" | CCGT | AL | Neutral | CCGT21.51 | 2 | 21.17 | |
| B | 6837456 | 0.172" | 0.078" | 0.008" | CCGT | JS | Neutral | CCGT1.5.5 | 2 | 31.87 | |
| C | 6801368 | 3/8" | 5/32" | 1/32" | CCGW | Yes | Neutral | CCGW32.52 | 2 | 185.47 | |
| D | 6888191 | 11/64" | 5/64" | 0.008" | CCGW | Yes | Neutral | CCGW1.5.5 | 1 | 79.00 | |
| E | 6856761 | 1/4" | 0.094" | 0.016" | CCMT | PS | Neutral | CCMT21.51 | 2 | 13.61 | |
| E | 6856763 | 3/8" | 5/32" | 0.008" | CCMT | PS | Neutral | CCMT32.5.5 | 2 | 17.45 | |
| F | 6805037 | 3/8" | 5/32" | 1/32" | CCMW | Yes | Neutral | CCMW32.52 | 2 | 137.71 |
