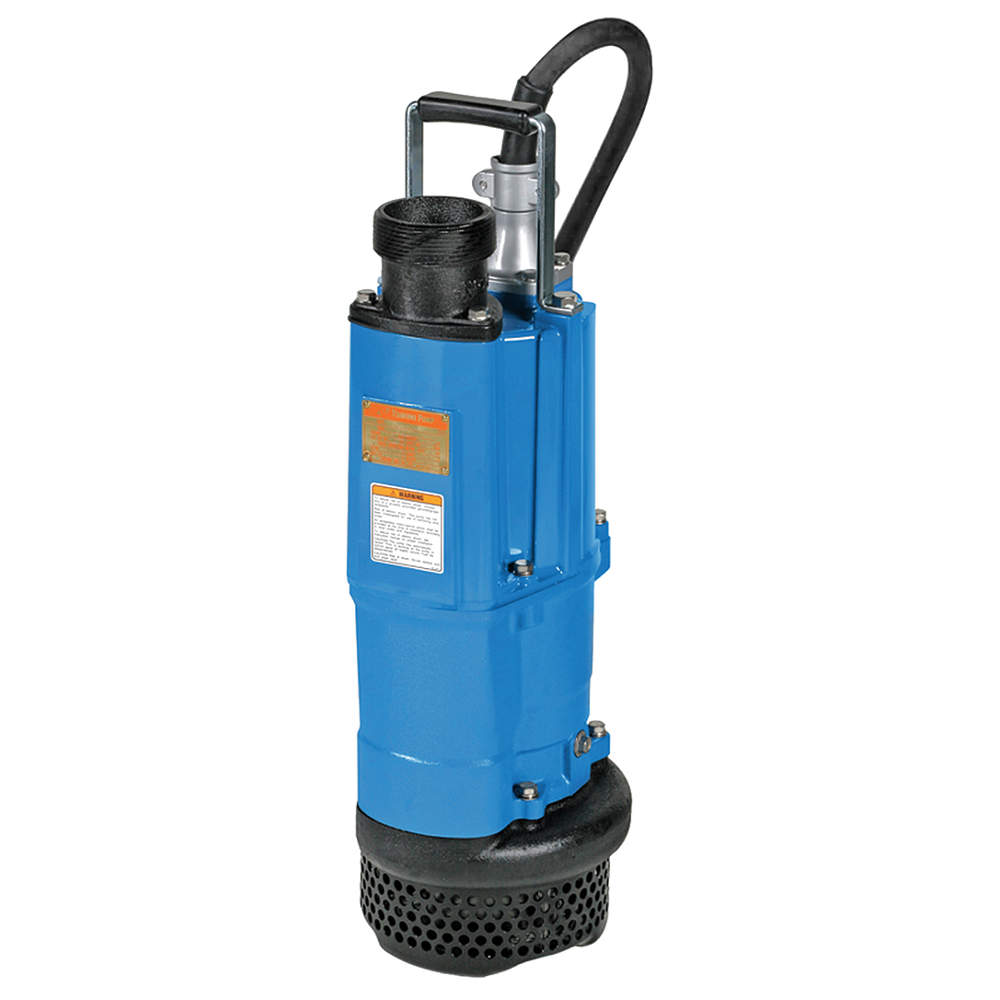

TSURUMI NK2-22L Submersible Dewatering Pump 3 Hp 220v
Item: AC7FTL
Model: NK2-22L
In Stock
Get it by ,
We deliver to your doorstep under DAP terms. Customs clearance is for your account
5.00% off
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Item | Construction Site/Residential Dewatering Pump |
|---|---|
| Amps | 13A |
| Base Material | Steel |
| Bearing Type | Double Shielded, Permanently Lubricated |
| Body Dia. | 9 1/4" |
| Body Material | Aluminum |
| Cord Size | 14 AWG |
| Diameter | 9 1/4" |
| Discharge Size | 3" |
| Discharge Type | MNPT |
| Duty Cycle | Continuous |
| Flow Rate @ 1 Ft. | 211 GPM |
| Flow Rate @ 10 Ft. | 200 GPM |
| Flow Rate @ 15 Ft. Of Head | 188 GPM |
| Flow Rate @ 20 Ft. | 180 GPM |
| Flow Rate @ 20 Ft. Of Head | 180 GPM |
| Flow Rate @ 25 Ft. | 170 GPM |
| Flow Rate @ 30 Ft. | 152 GPM |
| Flow Rate @ 35 Ft. | 140 GPM |
| Flow Rate @ 40 Ft. | 120 GPM |
| Flow Rate @ 5 Ft. | 211 GPM |
| Frequency | 60 Hz |
| Function | Dewatering |
| Handle | Top Carrying |
| Height | 26 1/2" |
| Hp | 3 hp |
| Impeller Material | High Chrome |
| Insulation Class | Class B |
| Length | 26 1/2" |
| Manufacturers Warranty Length | 2 yrs. |
|---|---|
| Max. Dia. Solids | 5/16" |
| Max. Flow Rate @ 15 Ft. | 188 GPM |
| Max. Head | 59 ft. |
| Max. Liquid Temp. | 104°F |
| Max. Media Temp. | 104°F |
| Max. Motor Speed | 3465 RPM |
| Min. Sump Pit Dia. | 14" |
| Min. Water Depth | 14" |
| Motor Type | Permanent Split Capacitor |
| No. Of Conductors | 3 |
| Outlet | 3" Mnpt |
| Outlet Size | 3" |
| Outlet Type | MNPT |
| Overall Height | 26 1/2" |
| Phase | 1 |
| Rpm | 3465 RPM |
| Seal Material | Silicone Carbide |
| Shaft Material | Stainless Steel |
| Shaft Seal Material - Pumps | Silicone Carbide |
| Standard Logo | etl.png, cetlus.png |
| Switch Actuation | No Switch Included |
| Thermal Protection | Automatic |
| Top Material | Die Cast Aluminum |
| Type | Construction Site, Residential Dewatering |
| Voltage | 240V AC |
| Warranty | 2 yrs. |
| Width | 9 1/4" |
| Width At Widest Point | 9 1/4" |
Product Details
- GPM of Water @ 45 Ft. of Head (100)
- Suction (Screened Bottom)
Shipping Information
| height | 35.56 |
|---|---|
| length | 71.12 |
| width | 33.02 |
| hs code | 8413702004 |
|---|---|
| country of origin | JP |
| weight | 37.800000 |
