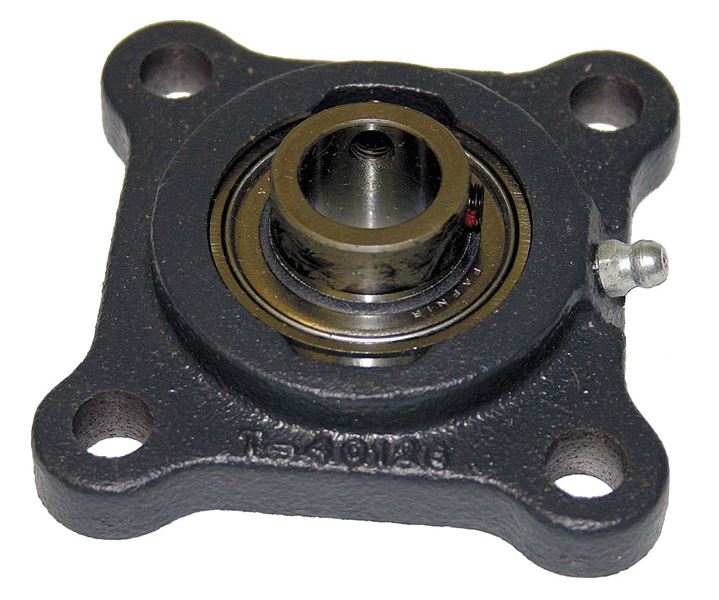

TIMKEN SCJ 3/4 Four Bolt Mounted Bearing Setscrew Locking, 0.75 Inch Shaft Size, 1460 lbf Load Rating
Item: BF7LDL
Model: SCJ 3/4
In Stock
Get it by ,
We deliver to your doorstep under DAP terms. Customs clearance is for your account
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Back Side To Center Width | 0.406" |
|---|---|
| Bearing Insert Material | Alloy Steel |
| Bearing Insert Type | Radial Ball |
| Bearing Material Grade | Grade 52100 |
| Bolt Spacing | 2 1/2" |
| Bore Dia. | 3/4" |
| Bore Type | Cylindrical |
| Closure | Double Sealed |
| Dynamic Load Capacity | 3192 lbf. |
| Expansion Type | Fixed |
| Flange Thickness | 7/16" |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Housing Material Finish | Powder Coated |
| Housing Style | 4 Bolt Square Flange Block |
| Housing Type | Square |
| Included Bearing | GYA012RRB |
| Inner Ring Width | 1.063" |
| Insert Part Number | GYA012RRB |
| Length Through Bore | 1.063" |
| Lubricant Material | Nlgi #2 Equivalent |
| Lubrication Openings | One Zirc Fitting |
| Max. Speed | 7360 RPM |
| Maximum Temperature | 200°F |
| Minimum Temperature | -65°F |
|---|---|
| Mount Hole Center-to-center Height | 2 1/2" |
| Mount Hole Center-to-center Length | 2 1/2" |
| Mount Hole Size | 0.394" |
| Mounting Bolt Size | 3/8" |
| Mounting Bolts | 27/64" |
| Mounting Method | Set Screw |
| No. Of Mounting Holes | 4 |
| Nominal Bolt Circle Dia | 3 1/2" |
| Number Of Mount Holes | 4 |
| Number Of Rows | 1 |
| Other Features | Normal Duty |
| Overall Height | 3 23/64" |
| Overall Length | 3 23/64" |
| Overall Width | 1 1/8" |
| Pilot Configuration | No Pilot |
| Relubricatable | Yes |
| Rolling Element | Ball Bearing |
| Rolling Element Rows | 1 |
| Seal Material | Land Riding Rubber |
| Seal Type | Molded Shroud, Contact |
| Shaft Locking Type | Set Screws |
| Static Radial Load Capacity | 1461 lbf. |
| System Of Measurement | Imperial |
Product Details
Mounted Ball Bearing
Shipping Information
| height | 8.53 |
|---|---|
| length | 8.53 |
| width | 2.86 |
|---|---|
| weight | 0.517500 |
Related Products
| Style | Model | Housing Material | Bore Dia. | Overall Length | Overall Width | Overall Height | Flange Thickness | Mount Hole Center-to-center Length | Mount Hole Center-to-center Height | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | SCJ1 3/16 | Cast Iron | - | 4 15/64" | 1 21/64" | 4 15/64" | 9/16" | 3 1/4" | 3 1/4" | 120.28 | |
| B | YCJ1 11/16 SGT | - | - | - | - | - | - | - | - | 258.90 | |

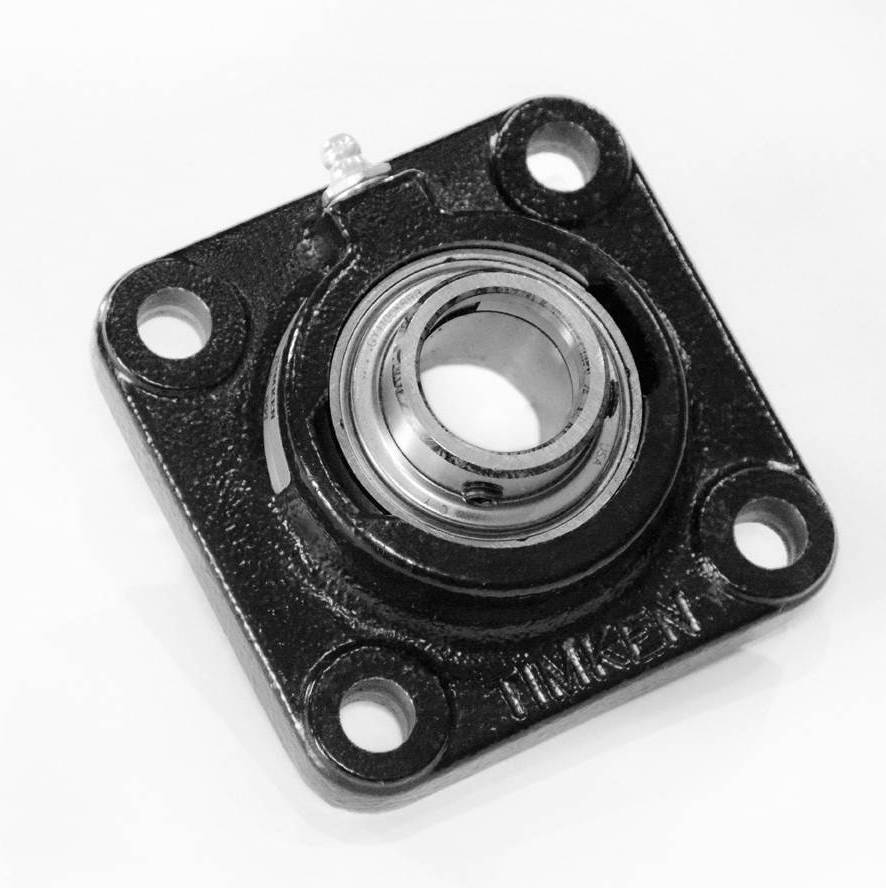

| B | YCJ1 3/8 SGT | Cast Iron | - | 4 5/8" | 1 59/64" | 4 5/8" | 17/32" | 3 5/8" | 3 5/8" | 171.50 | |

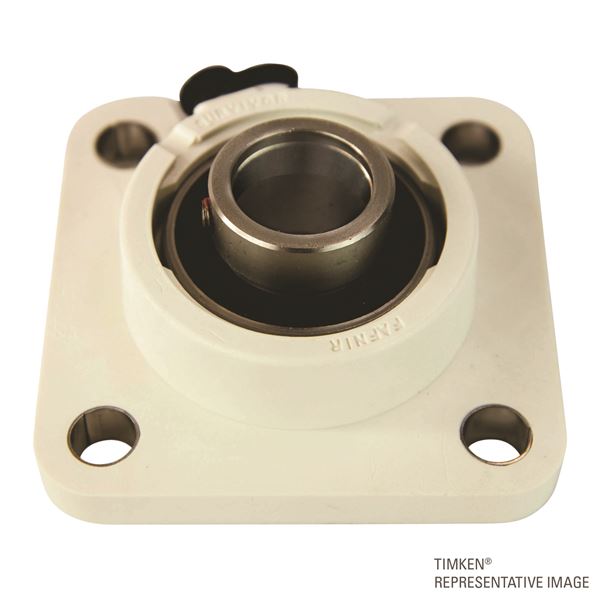

| C | YCJ 25 PT SGT | Polymer | 0.984" | - | - | - | - | - | - | 240.93 | |
| A | SCJ1 15/16 | Cast Iron | 1.938" | 5 5/8" | 1 51/64" | 5 5/8" | 21/32" | 4 3/8" | 4 3/8" | 211.95 | |
| A | SCJ2 3/16 | Cast Iron | - | 6 23/64" | 1 7/8" | 6 23/64" | 23/32" | 5 1/8" | 5 1/8" | 265.78 | |
| C | YCJ1 7/16 PT SGT | Polymer | 1.438" | - | - | - | - | - | - | 333.10 |
