TIMKEN GVFTDR1 Two Bolt Flanged Eccentric Locking Collar, 1.0000 Inch Shaft Size, 1750 lbf Load Rating
Item: BF3QML
Model: GVFTDR1
17 In Stock
Ships within 2 days via
£243.01/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Specifications
| Bearing Type | Ball Bearing |
|---|---|
| Bolt Hole Size N | 0.344" |
| Bolt Hole Spacing | 3" |
| Dimension A3 | 0.359" |
| Dimension B1 | 1.22" |
| Dimension D1 | 1.5" |
| Dimension E1 | 0.922" |
| Dimension H2 | 2.375" |
| Dimension S1 | 0.926" |
| Dynamic Load Rating | 3490 lbf. |
| Flange Thickness A1 | 0.422" |
|---|---|
| Housing Construction | Two-Bolt Flange |
| Housing Width A | 0.781" |
| Seal Type | Molded Shroud |
| Series | Normal Duty |
| Shaft Size D | 1" |
| Static Load Rating | 1750 lbf. |
| Total Height L | 2.625" |
| Total Length H | 3.75" |
Product Details
Shipping Information
| Height | 2.54 |
|---|---|
| Length | 2.54 |
| Width | 2.54 |
|---|---|
| Weight | 0.360000 |
Related Products
| Style | Model | Housing Material | Overall Length | Overall Width | Overall Height | Flange Thickness | Mount Hole Center-to-center Length | Mounting Bolt Size | Bore Dia. | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

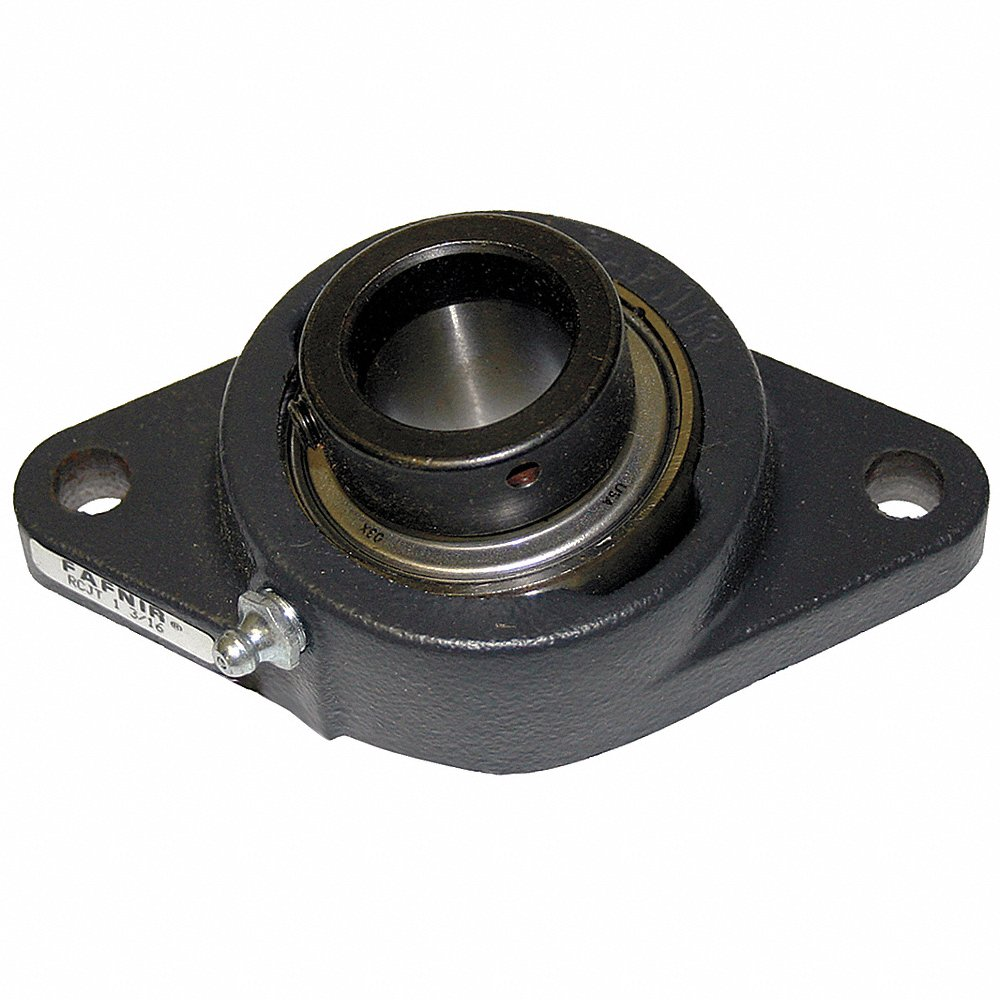

| A | RCJT1 | Cast Iron | - | - | - | - | - | - | 1" | 116.81 | |

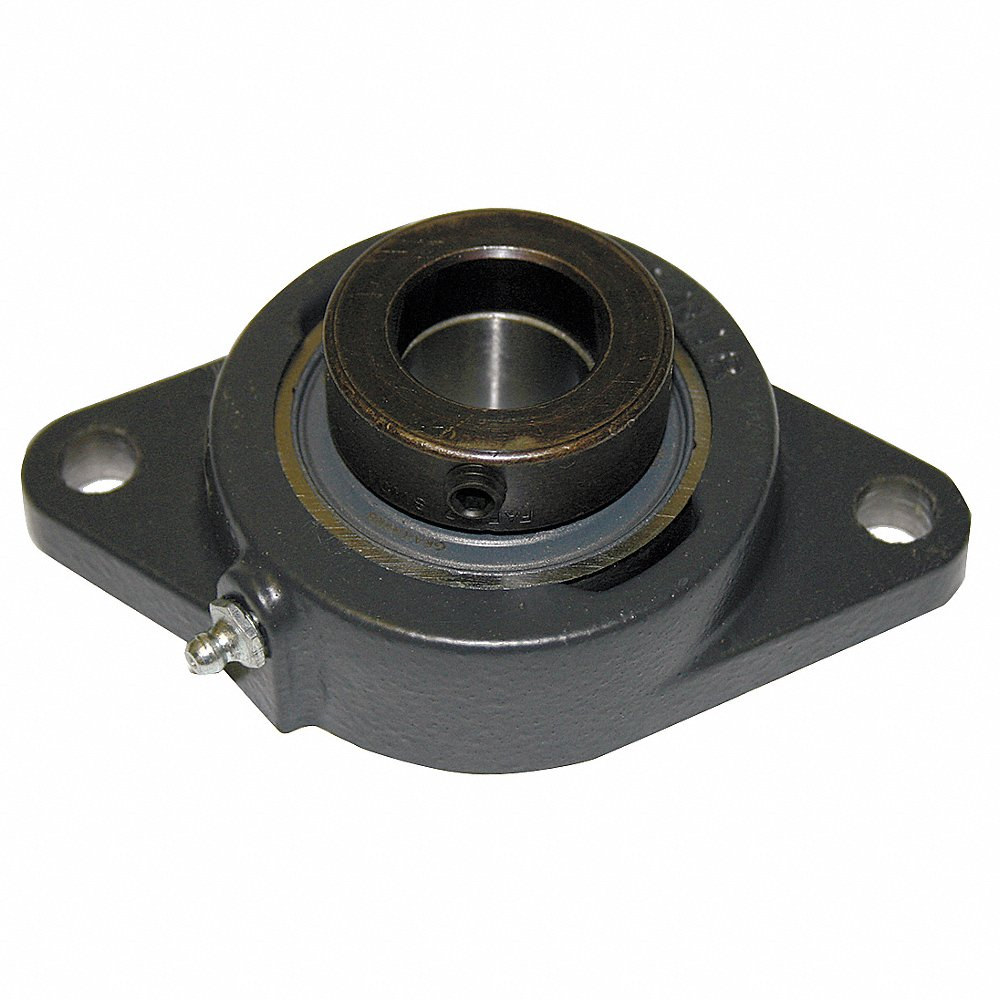

| B | VCJT1 | Cast Iron | - | - | - | - | - | - | 1" | 95.47 | |
| C | FLCT1 | Cast Iron | - | - | - | - | - | - | 1" | 109.63 | |
| D | RCJT1 3/16 | Cast Iron | 5 9/16" | 1 63/64" | 3 1/8" | 15/32" | 4 19/32" | 7/16" | - | 162.95 | |
| A | RCJT2 | - | - | - | - | - | - | - | - | 323.71 | |
| D | RCJT1 1/4 | Cast Iron | 6 1/8" | 2 3/32" | 3 5/8" | 15/32" | 5 1/8" | 1/2" | - | 376.52 | |
| D | RCJT 1/2 | Cast Iron | 3 55/64" | 1 19/32" | 2 1/8" | 13/32" | 3" | 3/8" | 1/2" | 279.09 |
