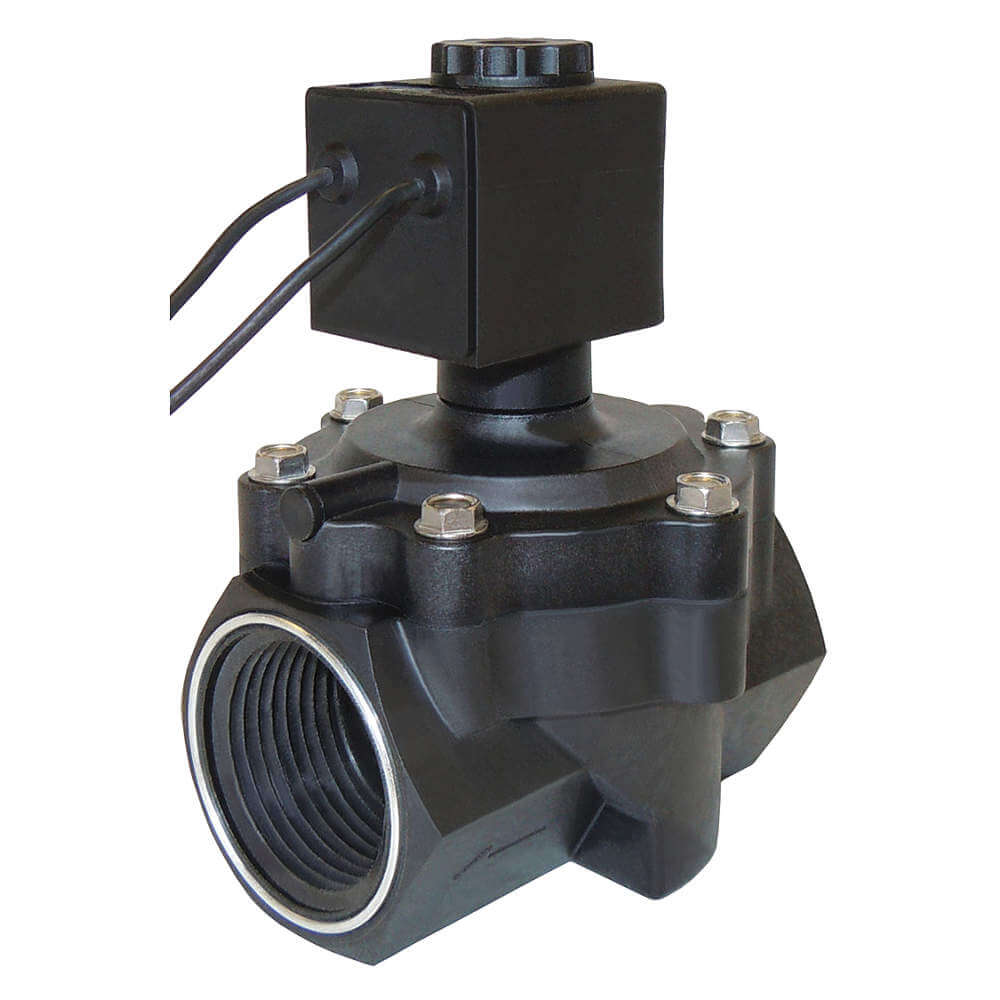

SPARTAN SCIENTIFIC 3685-020-9212B Solenoid Valve 3/4 Inch 12vdc Buna N
Item: AF6RUM
Model: 3685-020-9212B
In Stock
Get it by Wednesday, Apr 15
£9.99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates
We deliver to your doorstep under DAP terms. Customs clearance is for your account
5.00% off
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Application | General Purpose |
|---|---|
| Body Material | PEI |
| Class | Class F |
| Coefficient Of Volume | 9.7 |
| Coefficient Of Volume (cv) | 9.5 |
| Coil Enclosure | Watertight, Dust Tight |
| Coil Insulation Class | F |
| Electrical Connection | Wire Leads |
| Environmental Rating - Valves | Outdoor |
| For Media | Air, Light Oil, Noble Gases, Water |
| Frequency | 60 Hz |
| Hz | 50/60 Hz |
| Includes Coil | Yes |
| Includes Seal | Yes |
| Inlet Connection Type | NPT |
| Ip Rating | IP65 |
| Max. Ambient Temperature | 122°F |
| Max. Fluid Temp. | 140°F |
| Max. Operating Pressure Differential - Air/inert Gas | 150 psi |
| Max. Operating Pressure Differential - Light Oil | 150 psi |
| Max. Operating Pressure Differential - Steam | Not Rated |
| Max. Operating Pressure Differential - Water | 150 psi |
| Min. Ambient Temperature | 50°F |
| Min. Operating Pressure Differential | 10 psi |
|---|---|
| Nema Rating | NEMA 4 |
| Nominal Pipe Size | 3/4" |
| Operating Environment | Outdoor |
| Operation | Pilot Operated |
| Operation Type | Pilot Operated |
| Orifice Diameter | 1 1/8" |
| Outlet Connection Type | NPT |
| Overall Height | 4 1/16" |
| Overall Length | 3" |
| Overall Width | 2 13/16" |
| Pipe Size | 3/4" |
| Pipe Size - Valves | 3/4" |
| Seal Material | NBR |
| Standard Logo | CE.png |
| Valve Body Style | Straight |
| Valve Configuration | Normally Closed |
| Valve Design | Diaphragm |
| Valve Positions | 2 Position |
| Valve Type | Remote Pilot |
| Valve Ways | 2-Way |
| Voltage | 12V DC |
| Wattage | 6.5 W |
Product Details
Solenoid Valve
Shipping Information
| height | 8.26 |
|---|---|
| length | 10.8 |
| width | 10.48 |
| hs code | 8481200020 |
|---|---|
| weight | 0.337500 |
Related Products
| Style | Model | Pipe Size | Voltage | Seal Material | Coefficient Of Volume | Valve Configuration | Body Material | Min. Operating Pressure Differential | Max. Fluid Temp. | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 3685-020-9216B | 3/4" | 24V AC | NBR | 9.7 | Normally Closed | PEI | 10 psi | 140°F | 228.96 | |
| A | 3685-020-9217B | 3/4" | 120V AC | NBR | 9.7 | Normally Closed | PEI | 10 psi | 140°F | 226.11 | |
| A | 3685-020-9213B | 3/4" | 24V DC | NBR | 9.7 | Normally Closed | PEI | 10 psi | 140°F | 229.06 | |
| A | 3685-030-9216B | 3/4" | 24V AC | EPDM | 9.7 | Normally Closed | PEI | 10 psi | 140°F | 226.11 | |
| A | 3685-030-9217B | 3/4" | 120V AC | EPDM | 9.7 | Normally Closed | PEI | 10 psi | 140°F | 226.11 | |
| A | 3685-030-9212B | 3/4" | 12V DC | EPDM | 9.7 | Normally Closed | PEI | 10 psi | 140°F | 231.91 | |
| A | 3685-030-9213B | 3/4" | 24V DC | EPDM | 9.7 | Normally Closed | PEI | 10 psi | 140°F | 231.26 |
