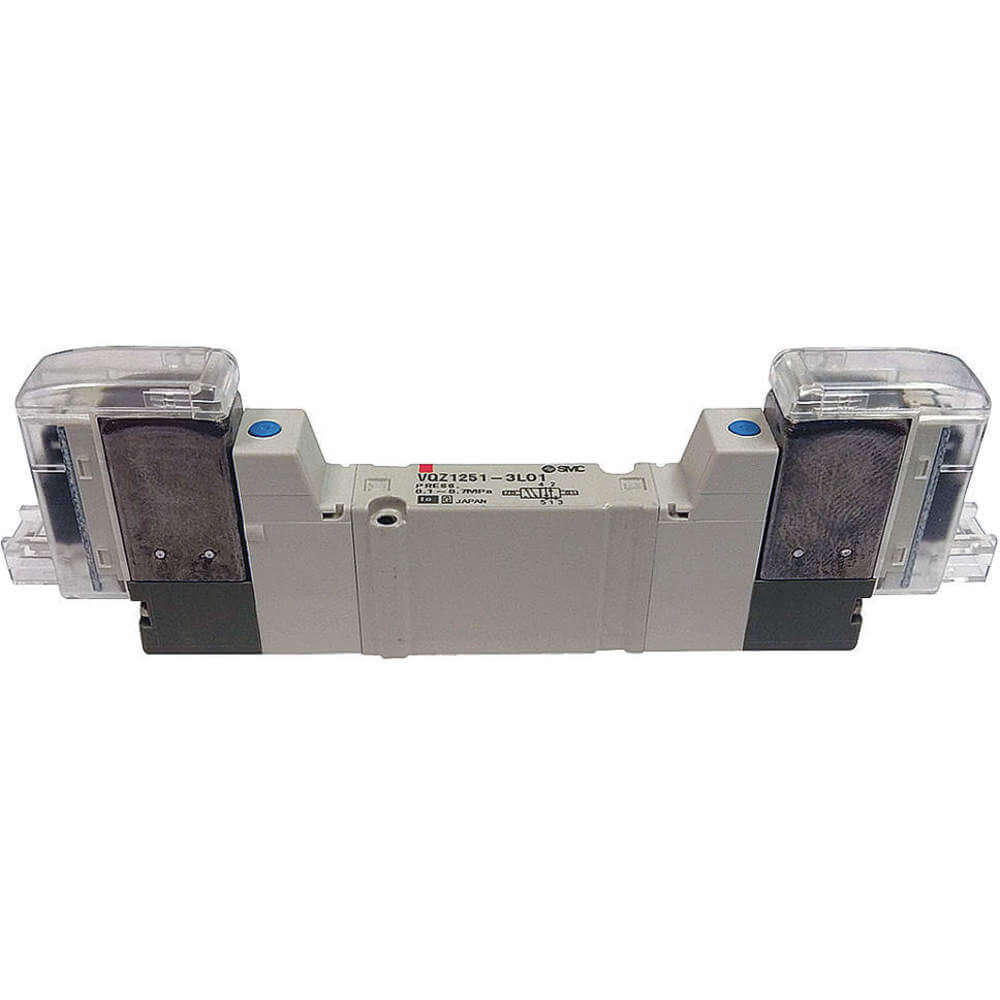

SMC VALVES VQZ1251-3LO1 Solenoid Air Control Valve 7.28 CFM
Item: AH6YLX
Model: VQZ1251-3LO1
In Stock
Get it by ,
We deliver to your doorstep under DAP terms. Customs clearance is for your account
5.00% off
₹168.860000
(ex. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Actuator Type | Single Solenoid |
|---|---|
| Ambient Temp. Range | +14°F to +122°F |
| Body Style | Base Mounted |
| Center Position | Open |
| Cfm | 7.28 CFM |
| Coefficient Of Volume | 0.26 |
| Coefficient Of Volume (cv) | 1.2 |
| Electrical Connection | Lead Wire |
| Electrical Connection Type | Plug In |
| Flow Rate - Maximum | 7.28 CFM |
| For Media | Air, Inert Gas |
| Includes Solenoid Coil | Yes |
| Lubrication | Lubrication Not Required |
| Number Of Ports | 5 |
| Number Of Positions | 2 |
| Number Of Ways | 5 |
| Operating Pressure - Maximum | 101 psi |
| Operating Pressure - Minimum | 15 psi |
| Operating Temperature - Maximum | 122°F |
| Operating Temperature - Minimum | 14°F |
| Overall Height | 1 27/32" |
|---|---|
| Overall Length | 4 17/32" |
| Overall Width | 13/32" |
| Override | Non-Locking |
| Pilot Pressure | 15 psi |
| Power Consumption | 0.35 W |
| Pressure | 15 psi to 105 psi |
| Pressure Rating | 15 psi to 105 psi |
| Product Type | Solenoid Air Control Valve |
| Response Time | 10 ms |
| Return Action | Solenoid Return |
| Seal Material | Rubber |
| Series | VQC1000 Series |
| Shifting Technology | Solenoid |
| Spool Material | Aluminum |
| Standards | Rohs Compliant |
| Vacuum Rating | Vacuum Operable |
| Valve Action | Normally Open/Normally Closed |
| Valve Type | Spool |
| Voltage | 110V AC |
Product Details
Solenoid Air Control Valve
Shipping Information
| height | 7.62 |
|---|---|
| length | 12.7 |
| width | 2.54 |
| country of origin | JP |
|---|---|
| weight | 0.054000 |
Related Products
| Style | Model | Voltage | Body Style | Overall Length | Coefficient Of Volume | Overall Width | Overall Height | Pipe Size | Ambient Temp. Range | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | VQ1101-51 | 24V DC | Base Mounted | 5" | 0.21 | 1 1/2" | 1/2" | 1/8" | +14°F to +122°F | 119.86 | |
| A | VQ1201-51 | 24V DC | Base Mounted | 5" | 0.21 | 2" | - | 3/8" | +14°F to +122°F | 208.14 | |
| A | VQ2101-51 | 24V DC | Base Mounted | 5" | 0.55 | 1 1/2" | 3/4" | - | +14°F to +122°F | 157.10 | |
| A | VQ2201-51 | 24V DC | Base Mounted | 5" | 0.55 | 2" | 3/4" | - | +14°F to +122°F | 210.03 | |
| B | SY3140-5LZ | 24V DC | Base Mounted | 2 3/32" | 0.3 | 1 1/2" | 3 1/32" | 1/8" | +14°F to +122°F | 100.03 | |
| B | SY3240-5LZ | 24V DC | Base Mounted | 2 3/32" | 0.3 | 1 1/2" | 4 9/32" | - | +14°F to +122°F | 170.69 | |
| C | SY5140-5LZ | 24V DC | Base Mounted | 2" | 0.59 | 1 1/2" | 3 25/32" | 1/8" | +14°F to +122°F | 106.09 |
