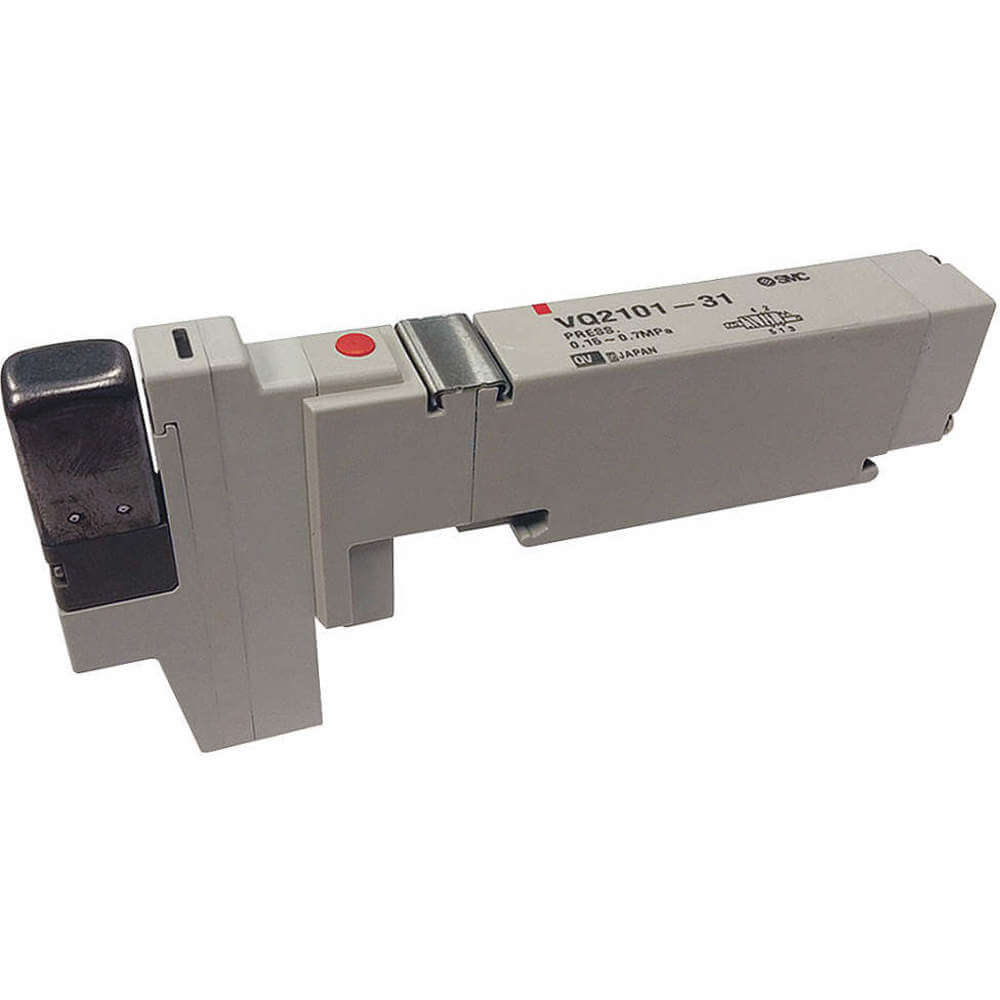

SMC VALVES VQ2101-31 Solenoid Air Control Valve 22.4 CFM

Item: AH6YLU
Model: VQ2101-31
26 In Stock

Ships within 2 days via

£156.68
5.00% off
£148.85/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Specifications

Actuator Type Single Solenoid
Actuator/return Solenoid/Spring
Ambient Temp. Range +14°F to +122°F
Body Material Aluminum
Body Style Base Mounted
Center Position Open
Cfm 22.4 CFM
Coefficient Of Volume 0.8
Electrical Connection Plug In
Electrical Connection Type Plug In
Flow Rate - Maximum 22.4 CFM
For Media Air, Inert Gas
Includes Solenoid Coil Yes
Lubrication Lubrication Not Required
Number Of Ports 5
Number Of Positions 2
Number Of Ways 5
Operating Pressure - Maximum 101 psi
Operating Pressure - Minimum 15 psi
Operating Temperature - Maximum 122°F
Operating Temperature - Minimum 14°F
Overall Height 2 7/8"
Overall Length 4 23/32"
Overall Width 5/8"
Override Non-Locking
Pilot Pressure 15 psi
Pilot Type Internal Pilot
Power Consumption 0.4 W
Pressure 15 psi to 105 psi
Pressure Rating 15 psi to 105 psi
Product Type Solenoid Air Control Valve
Response Time 31 ms
Return Action Spring Return
Seal Material Rubber
Series VQ2000 Series
Shifting Technology Solenoid, Spring
Spool Material Aluminum
Standards Rohs Compliant
Vacuum Rating Not Vacuum Operable
Valve Action Normally Open/Normally Closed
Valve Type Spool
Voltage 110V AC

Product Details

Solenoid Air Control Valve

Shipping Information

height 10.16
length 15.24
width 3.81
country of origin JP
weight 0.337500
