SMC VALVES

See our 858 reviews on trustpilot

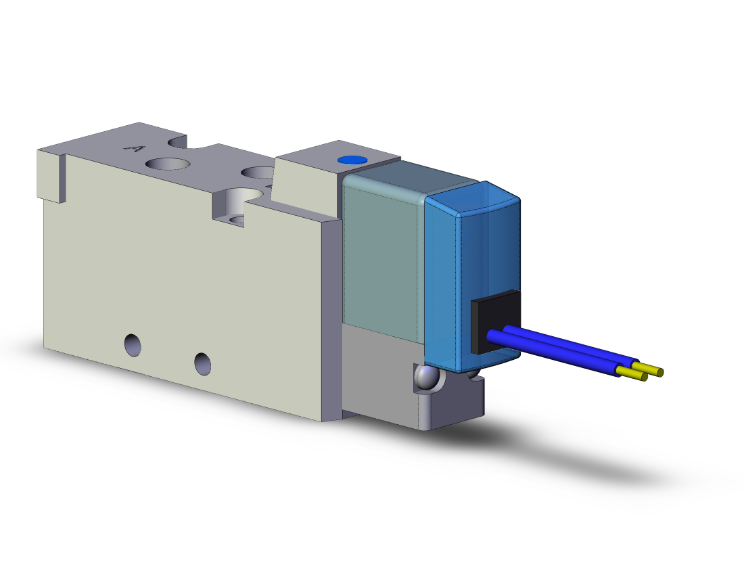

SMC VALVES SYJ5120-5G-M5 Solenoid Valve, 5 Port Size

Item: AN2CVK
Model: SYJ5120-5G-M5
17 In Stock

Ships within 2 days via

£85.51/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Actuation [Single] Single
application Single Unit
Body Option Individual Pilot Valve Exhaust Type
Bracket No Bracket
Driving Type 0.15 to 0.7
Flow Direction 4-Way
Indicator Light/surge Voltage Suppressor Without Indicator Light, Surge Voltage Suppressor
Lead Wire Electrical Entry Grommet Lead Wire Length: 300 mm
Manual Operation Type Non-Locking Push
Manual Switch Non Locking
Max. Operating Pressure 101 psi
Mounting Orientation Direct
No. Of Port 5
No. Of Positions 2
Number Of Solenoids Single
Operating Medium Air
Operating Temp. Range 14°F to 122°F
Pilot Air Supply Pilot Type Spool
Pipe Port Type One Touch Plumbing
Piping Type Body Ported
Plumbing Direct Plumbing
Pressure Rating (mpa) 0.15 MPa to 0.7 MPa
Seal Material Rubber
Seal Type Internal
Series SYJ Series
Solenoid Electrical Entry Grommet
Type Solenoid Valve
Valve Positions 2 Position Normally Open

Product Details

Solenoid Valve

Shipping Information

height 5.08
length 7.62
width 5.08
weight 0.900000
