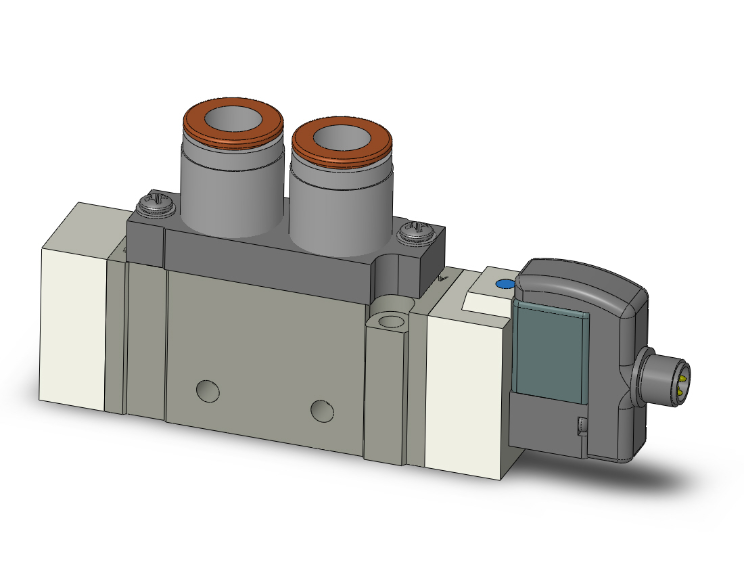

SMC VALVES SY7120-5WOZ-N11T Valve, 1/4 Port Size

Item: AN6FMK
Model: SY7120-5WOZ-N11T
23 In Stock

Ships within 2 days via

£104.95/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Specifications

Actuation Piloted Solenoid
Body Material Aluminum
Bracket Type Without Bracket
Flow Coefficient/flow Factor 1.4 Cv
Flow Direction 4-Way
Manual Operation Type Non-Locking Push
Max. Operating Pressure 101 psi
No. Of Port 5
No. Of Positions 2
Number Of Solenoids Single
Operating Medium Air
Operating Temp. Range 14°F to 122°F
Overall Height 45.3 mm
Overall Length 109.1 mm
Overall Width 18.9 mm
Piping Type Body Ported
Port Size One Touch Fitting For 3/8"
Port Sizes 3/8" NPTF
Seal Material Rubber
Series SY Series
Solenoid Power Consumption 0.4 W
Thread Standard NPTF
Valve Function Spool
Valve Series SY7000 Series
Voltage Suppressor With Light, Surge Voltage Suppressor

Product Details

Shipping Information

Height 5.08
Length 7.62
Width 5.08
Weight 0.900000
