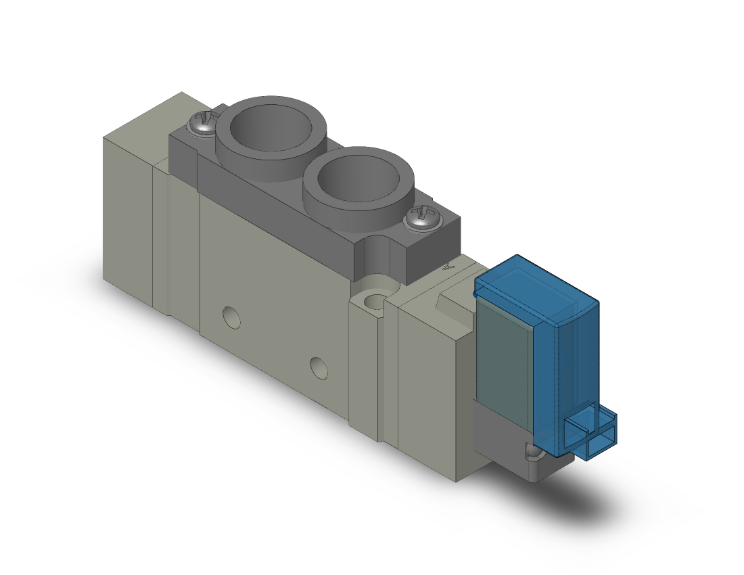

SMC VALVES SY7120-3LOZ-02T Valve, 1/4 Inch N Port

Item: AL3VPD
Model: SY7120-3LOZ-02T
25 In Stock

Ships within 2 days via

£96.2/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Specifications

Actuation Piloted Solenoid
Bracket Type Without Bracket
Flow Coefficient Cv Flow Factor Kv 0.81 (A/B to EA/EB) CV, 0.93 (P to A/B) CV
Manual Operation Type Non-Locking Push
No. Of Port 5
No. Of Positions 2
Number Of Solenoids Single
Operating Medium Air
Operating Temp. Range 14°F to 122°F
Overall Height 53.1 mm
Overall Length 112.2 mm
Overall Width 18.9 mm
Piping Type Body Ported Subplate Included
Port Sizes 1/4" NPTF
Solenoid Electrical Entry L Plug
Solenoid Power Consumption 0.35 W
Solenoid Supply Frequency 50/60 Hz
Solenoid Supply Voltage 110-115V AC
Thread Standard NPTF
Valve Function Spool
Valve Series SY7000 Series
Voltage Suppressor With Light, Surge Voltage Suppressor

Product Details

Shipping Information

Height 5.08
Length 7.62
Width 5.08
Weight 0.900000
