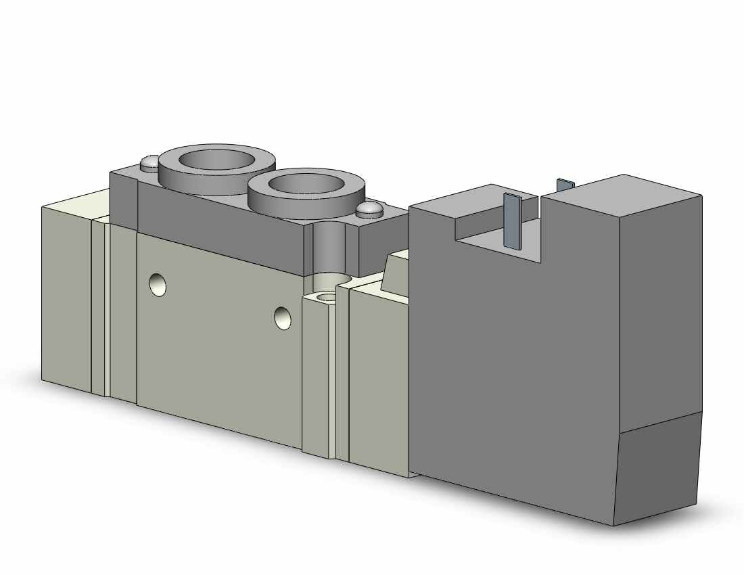

SMC VALVES SY5120-5YO-01F Valve, 1/8 Inch N Port

Item: AL3VCV
Model: SY5120-5YO-01F
21 In Stock

Ships within 2 days via

£92.05/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Actuation Piloted Solenoid
Bracket Type Without Bracket
Flow Coefficient Cv Flow Factor Kv 0.61 (A/B to EA/EB) CV, 0.49 (P to A/B) CV
Manual Operation Type Non-Locking Push
No. Of Port 5
No. Of Positions 2
Number Of Solenoids Single
Operating Medium Air
Operating Temp. Range 14°F to 122°F
Overall Height 45.3 mm
Overall Length 114.9 mm
Overall Width 15.8 mm
Piping Type Body Ported Subplate Included
Port Sizes 1/8" BSPP
Solenoid Electrical Entry DIN Terminal
Solenoid Power Consumption 0.35 W
Solenoid Supply Voltage 24V DC
Thread Standard G
Valve Function Spool
Valve Series SY5000 Series
Voltage Suppressor Without Light, Surge Voltage Suppressor

Product Details

Solenoid Valve

Shipping Information

height 5.08
length 10.16
width 2.54
weight 0.270000
