SMC VALVES

See our 858 reviews on trustpilot

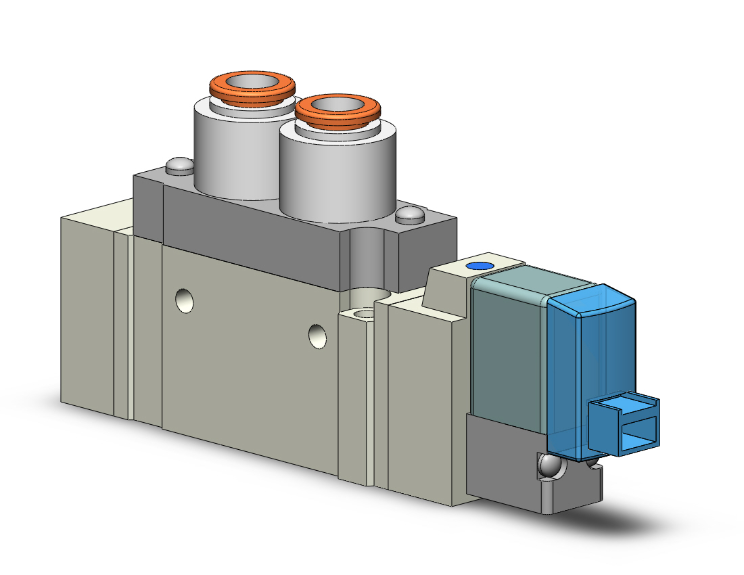

SMC VALVES SY5120-3LOZ-N7T Valve

Item: AL3VAM
Model: SY5120-3LOZ-N7T
26 In Stock

Ships within 2 days via

£92.9/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Specifications

Actuation Piloted Solenoid
Body Material Aluminum
Bracket Type Without Bracket
Flow Coefficient/flow Factor 0.9 Cv
Flow Direction 4-Way
Manual Operation Type Non-Locking Push
No. Of Port 5
No. Of Positions 2
Number Of Solenoids Single
Operating Medium Air
Operating Temp. Range 14°F to 122°F
Overall Height 45.3 mm
Overall Length 98 mm
Overall Width 15.8 mm
Piping Type Body Ported
Port Size One Touch Fitting For 1/4"
Port Sizes 1/4" NPTF
Seal Material Rubber
Series SY Series
Solenoid Electrical Entry L Plug
Solenoid Power Consumption 0.35 W
Solenoid Supply Frequency 50/60 Hz
Solenoid Supply Voltage 110-115V AC
Thread Standard NPTF
Valve Function Spool
Valve Series SY5000 Series
Voltage 110V AC (115V AC)
Voltage Suppressor With Light, Surge Voltage Suppressor

Product Details

Shipping Information

Height 5.08
Length 7.62
Width 5.08
Weight 0.900000
