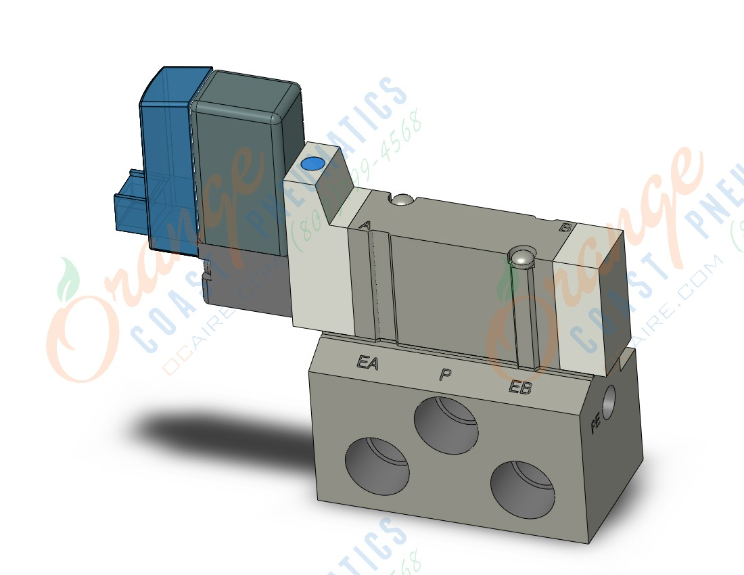

SMC VALVES SY3140-3LOZ-01T Valve, 1/8 Inch Base Mount

Item: AL3URJ
Model: SY3140-3LOZ-01T
24 In Stock

Ships within 2 days via

£96.82/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Actuation [Single] Single
application Unit For Manifold Mounting
Body Material Zinc
Bracket Type Without Bracket
Driving Type 0.15 to 0.7
Flow Direction 4-Way
Indicator Light/surge Voltage Suppressor With Indicator Light, Surge Voltage Suppressor
Lead Wire Electrical Entry L Plug Connector With Lead Wire (Length: 300 mm)
Manual Operation Type Non-Locking Push
Mounting Orientation Manifold Base
No. Of Port 5
No. Of Positions 2
Number Of Solenoids Single
Operating Medium Air
Operating Temp. Range 14°F to 122°F
Overall Height 60.5 mm
Overall Length 79 mm
Overall Width 22 mm
Piping Type Base Mounted Subplate Included
Port Sizes 1/8" NPTF
Pressure Rating (mpa) 0.15 MPa to 0.7 MPa
Seal Material Rubber
Series SY Series
Solenoid Electrical Entry L Plug
Solenoid Power Consumption 0.35 W
Solenoid Supply Frequency 50/60 Hz
Solenoid Supply Voltage 110-115V AC
Thread Standard NPTF
Type Solenoid Valve
Valve Function Spool
Valve Positions 2 Position Exhaust
Valve Series SY3000 Series
Voltage 110V AC
Voltage Suppressor With Light, Surge Voltage Suppressor

Product Details

Solenoid Valve

Shipping Information

height 5.08
length 7.62
width 5.08
weight 0.900000
