Smc Valves SY3120-5LZ-M5 | 22KD48 | Solenoid Air Control Valve 1/8 Inch 24vdc

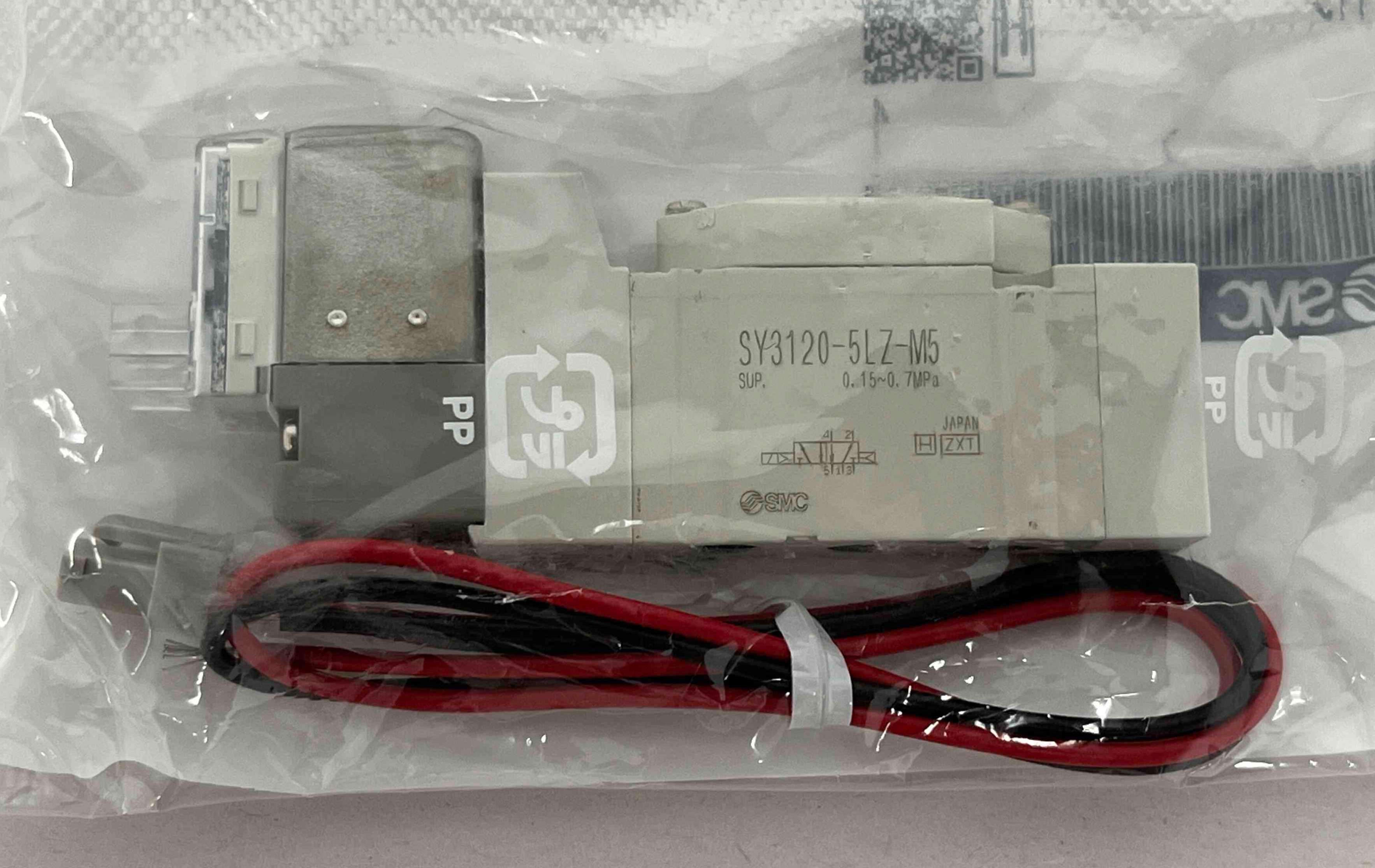

SMC VALVES SY3120-5LZ-M5 Solenoid Air Control Valve 1/8 Inch 24vdc

Item: AF7RGU

Model: SY3120-5LZ-M5

23 In Stock

Ships within 2 days via

Specifications

Actuator Type	Single Solenoid
Actuator/return	Solenoid/Spring
Ambient Temp. Range	+14°F to +122°F
Body Features	Single
Body Material	Aluminum
Body Style	Base Mounted
Cfm	0.29 CFM
Coefficient Of Volume	0.18
Coefficient Of Volume (cv)	0.23
Electrical Connection	Plug Connector With Lead Wire
Electrical Connection Type	Plug In
Exhaust Port Connection Gender	Female
Exhaust Port Connection Size	5 mm
Exhaust Port Connection Type	BSPT
Flow Rate - Maximum	0.29 CFM
For Media	Air
Includes Mounting Hardware	Hardware Included
Includes Solenoid Coil	Yes
Inlet Port Connection Gender	Female
Inlet Port Connection Size	5 mm
Lubrication	Lubrication Not Required
Number Of Ports	5
Number Of Positions	2
Number Of Ways	5
Operating Pressure - Maximum	101 psi
Operating Pressure - Minimum	15 psi

Operating Temperature - Maximum	122°F
Operating Temperature - Minimum	14°F
Overall Height	1"
Overall Length	3 1/32"
Overall Width	1 1/8"
Override	Non-Locking
Pilot Port Connection Gender	Female
Pilot Port Connection Size	M5
Pilot Pressure	22 psi
Pilot Type	Internal Pilot
Pipe Size	1/8"
Power Consumption	0.4 W
Pressure	22 psi to 100 psi
Pressure Rating	22 psi to 100 psi
Product Type	Solenoid Air Control Valve
Response Time	12 ms
Return Action	Spring Return
Seal Material	Rubber
Series	SY3000 Series
Shifting Technology	Solenoid
Spool Material	Aluminum
Standard Logo	ce.png
Standards	Rohs Compliant
Vacuum Rating	Not Vacuum Operable
Valve Type	Spool
Voltage	24V DC

HS Code	8481200060
Weight	0.045000

Style	Model	Voltage	Body Style	Overall Length	Coefficient Of Volume	Overall Width	Overall Height	Pipe Size	Ambient Temp. Range	Price (ex. VAT)
A	VQ1101-51	24V DC	Base Mounted	5"	0.21	1 1/2"	1/2"	1/8"	+14°F to +122°F	101.88
A	VQ1201-51	24V DC	Base Mounted	5"	0.21	2"	-	3/8"	+14°F to +122°F	176.92
A	VQ2101-51	24V DC	Base Mounted	5"	0.55	1 1/2"	3/4"	-	+14°F to +122°F	133.54
A	VQ2201-51	24V DC	Base Mounted	5"	0.55	2"	3/4"	-	+14°F to +122°F	178.53
B	SY3140-5LZ	24V DC	Base Mounted	2 3/32"	0.3	1 1/2"	3 1/32"	1/8"	+14°F to +122°F	85.03
B	SY3240-5LZ	24V DC	Base Mounted	2 3/32"	0.3	1 1/2"	4 9/32"	-	+14°F to +122°F	145.09
C	SY5140-5LZ	24V DC	Base Mounted	2"	0.59	1 1/2"	3 25/32"	1/8"	+14°F to +122°F	90.18
