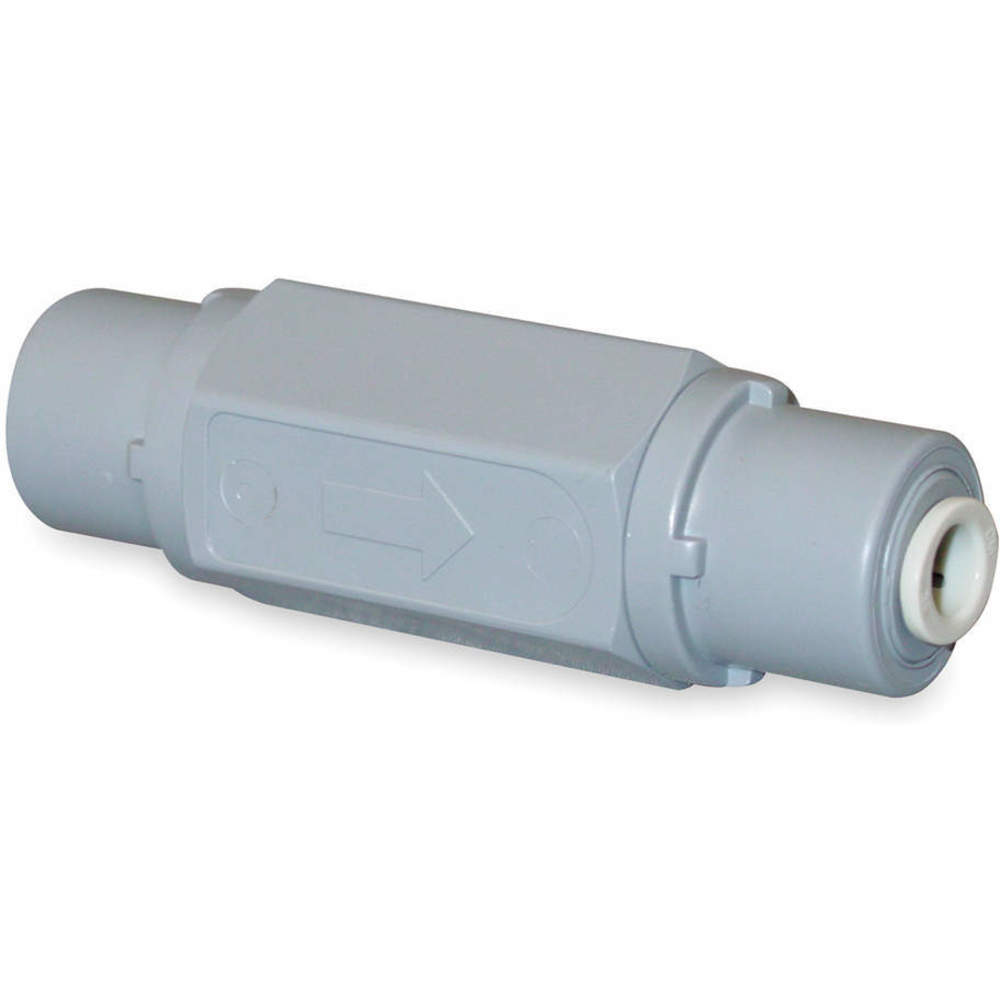

SMC VALVES PVC CHK 426-4SMC4SMC-B Ball Cone Spring Check Valve Grey Pvc

Item: AD7CJE
Model: PVC CHK 426-4SMC4SMC-B
15 In Stock

Ships within 2 days via

£52.08
5.00% off
£49.48/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Specifications

3-a Compliance Not Rated
Body Material PVC
Check Mechanism Ball
Color Gray
Connection Size - Side 1 1/4"
Connection Size - Side 2 1/4"
Connection Type Push x Push
Connection Type - Side 1 Push
Connection Type - Side 2 Push
For Media Water
Hex Size 1"
Length 3.437"
Material PVC
Max. Pressure (cwp) 125 psi
Max. Pressure (steam) Not Rated
Max. Temp. 140°F
Max. Water Pressure 125 psi
Media Temp. Range -20°F to +140°F
Media Temperature Range -20°F to +140°F
Mounting Orientation Horizontal, Vertical
Mounting Position Horizontal/Vertical
Operating Temperature - Maximum 140°F
Operating Temperature - Minimum -20°F
Overall Height 1"
Overall Length 3.44"
Pipe Size 1/4"
Seal Material Buna N
Seat Material PVC
Silent Check Standard
Size 1/4"
Spring Material Stainless Steel
Vacuum Service Rating Not Rated
Valve Body Style Inline
Width 1"

Product Details

Shipping Information

Height 2.79
Length 13.97
Width 11.43
HS Code 8481301090
Country Of Origin US
Weight 0.031500
