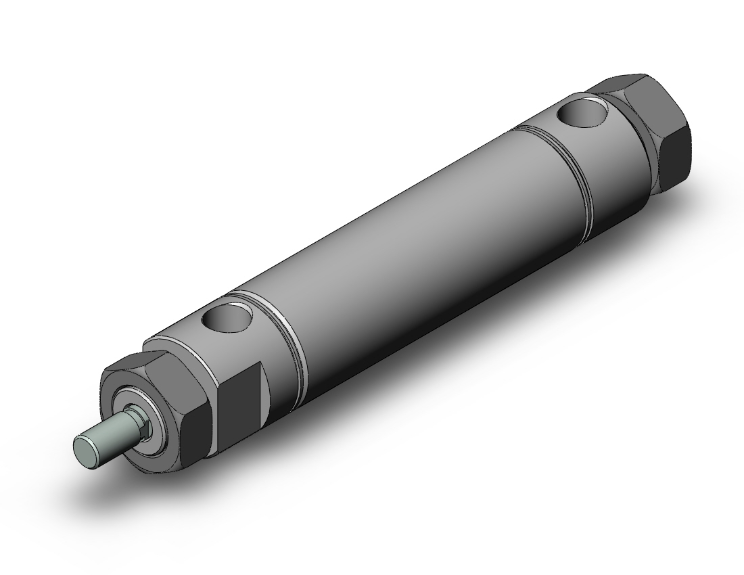

SMC VALVES NCDME106-0200C Round Body Cylinder, 1 1/16 Inch Size, Double Acting Auto Switcher

Item: AL7QFD
Model: NCDME106-0200C
14 In Stock

Ships within 2 days via

£63.16/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Body Material Stainless Steel
Bore Dia. 1.0625"
Cushion Type Rubber Bumper
Cylinder Size Standard
Included Options Switch Ready, Magnetized
Max. Operating Pressure 250 psi
Min. Operating Pressure 8 psi
Mounting Type Double End Mount
Operating Pressure Range 8 psi to 250 psi
Operating Temp. Range 40°F to 140°F
Overall Length 6.75"
Overall Width 1.12"
Piston Action Double Acting
Port Gender Female
Port Size 0.125 NPT
Port Thread Standard NPT
Pull Force At 100 Psi 81.1 lbf.
Push Force At 100 Psi 88.7 lbf.
Rod Gender Male
Rod Size 0.3125"
Rod Size/thread 5/16"-24 Male UNF
Rod Thread Standard UNF
Rod Type Single Rod
Series NCM Series
Stroke 2"

Product Details

Round Body Cylinder

Shipping Information

height 7.62
length 30.48
width 7.62
weight 3.150000
