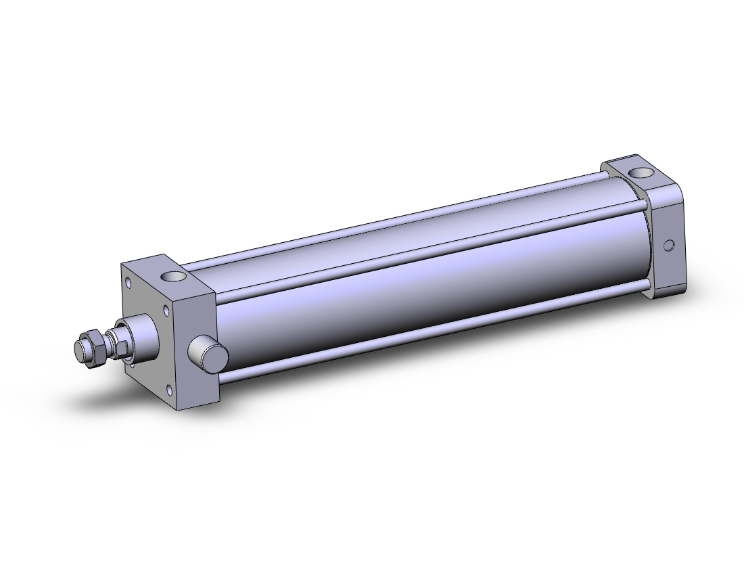

SMC VALVES NCA1U325-1400 Tie Rod Cylinder, 3.25 Inch Size, Double Acting

Item: AM8UKC
Model: NCA1U325-1400
In Stock

Get it by Wednesday, Apr 15

£404.6/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Bore Dia. 3.25"
Clevis Mount (detachable) - Mp2 NCA1-D325
Clevis Mount (fixed) - Mp1 NCA1-X325
Cushion Type Cushion Both Ends
Cylinder Type NFPA
Eye Mount - Mp4 (plain) NCA1-C325
Flange Mount - Mf1/mf2 NCA1-F325
Foot Mounts Ms1 NCA1-L325
Foot Mounts Ms2 NCA1-S325
Jam Nut JM-10
Max. Operating Pressure 250 psi
Min. Operating Pressure 8 psi
No. Of Switches 2
Operating Pressure Range 8 psi to 250 psi
Operating Temp. Range 40°F to 140°F
Overall Height 4.33"
Overall Width 6 1/2"
Piston Action Double Acting
Port Gender Female
Port Size 0.5 NPT
Port Thread Standard NPT
Pull Force At 100 Psi 79 lbf.
Push Force At 100 Psi 830 lbs.
Rod - Thread Size 3/4-16 Male Thread
Rod Clevis NY-325
Rod Gender Male
Rod Size 1"
Rod Thread Standard UNF
Rod Type Single Rod
Seal Kit NC1A325PS
Series NCA1 Series
Stroke 14"

Product Details

Tie Rod Cylinder

Shipping Information

height 7.62
length 30.48
width 7.62
weight 3.150000
