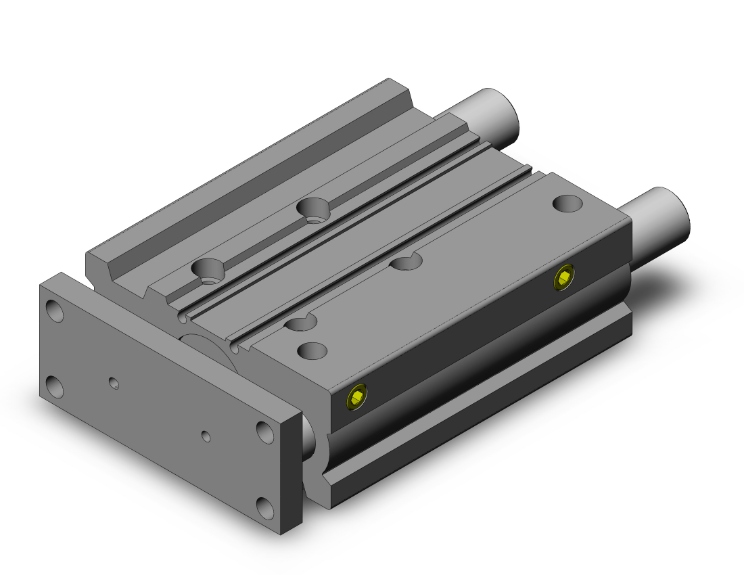

SMC VALVES MGPM32-100Z Compact Cylinder, 32 mm Size, Slide Bearing

Item: AN6CAQ
Model: MGPM32-100Z
27 In Stock

Ships within 2 days via

£550.36/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Specifications

Bearings Slide
Bore Dia. 32 mm
Cushion Type Rubber Bumper
Guided Cylinder Type Heavy Duty Compact Guide Cylinder
No. Of Switches 2
Operating Pressure Range 0.1 MPa to 1 MPa
Operating Temp. Range -10°C to +60°C
Overall Height 48 mm
Overall Length 202 mm
Overall Width 112 mm
Piston Action Double Acting
Port Thread Standard Rc
Pull Force At 100 Psi 422N
Push Force At 100 Psi 563N
Rod Type Single Rod

Product Details

Shipping Information

Height 7.62
Length 30.48
Width 7.62
Weight 3.150000
